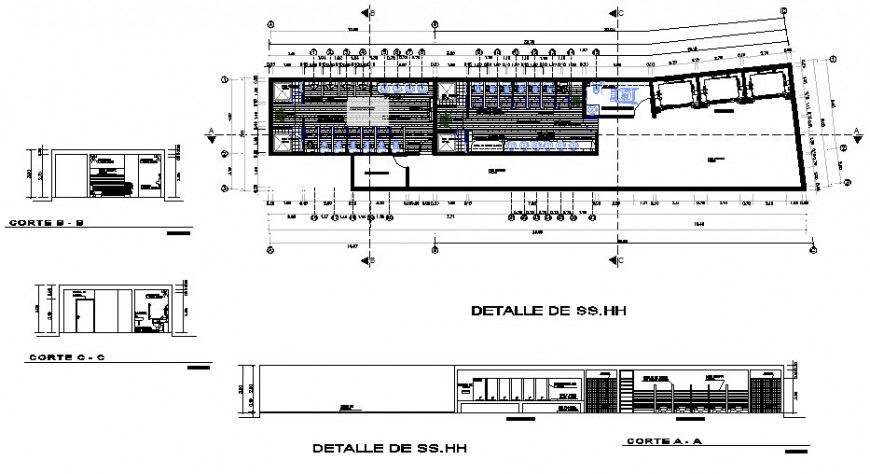

Hotel sanitary facility section and installation details dwg file


Description

Hotel sanitary facility section and installation details that includes a detailed view of male toilet sectional details, female toilet sectional details, passage, sanitary equipment installation details, doors and ventilation details, plumbing details, interior details, dimensions details, sporst ground details, all sided elevation details, wall section details and much more of sanitary installation details.




File Type: DWG File ID: 110120
