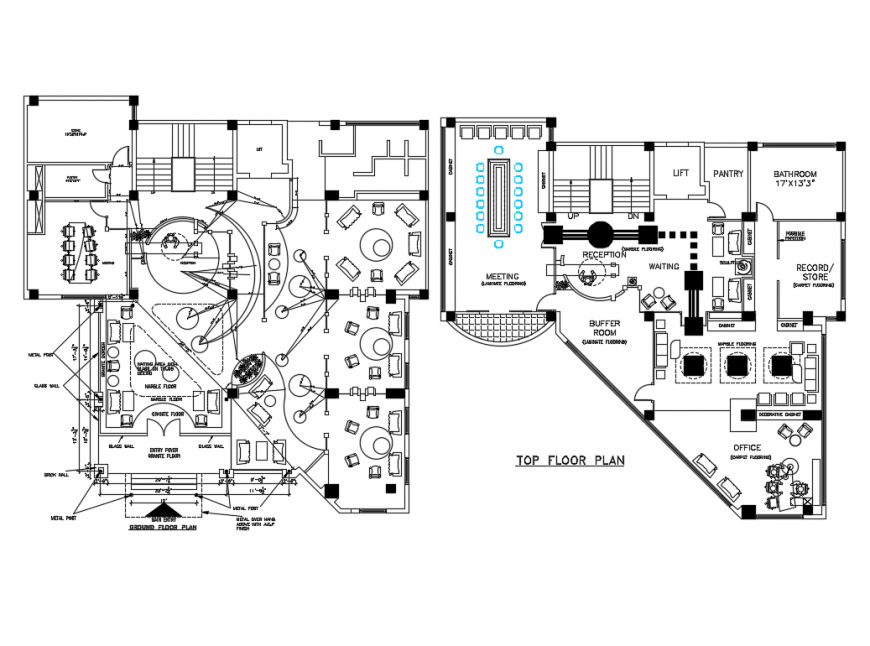

Corporate office ground and first floor plan layout details dwg file


Description

Corporate office ground and first floor plan layout details that includes a detailed view of reception area, waiting area,  cabin, bottom false ceiling, computer lab, bottom of grid ceiling, counselling room and library, conference room, manager cabin, meeting room, cleaning department, departmental office, smoking area, head offices, accountant rooms, pantry, kitchen, dining area, server room, meeting room, pantry and much more of office floor plan details.




File Type: DWG File ID: 120795

Uploaded by:


Eiz Luna
New-Zealand
