Storage tank for storage and fuel distribution installation details dwg file


Description

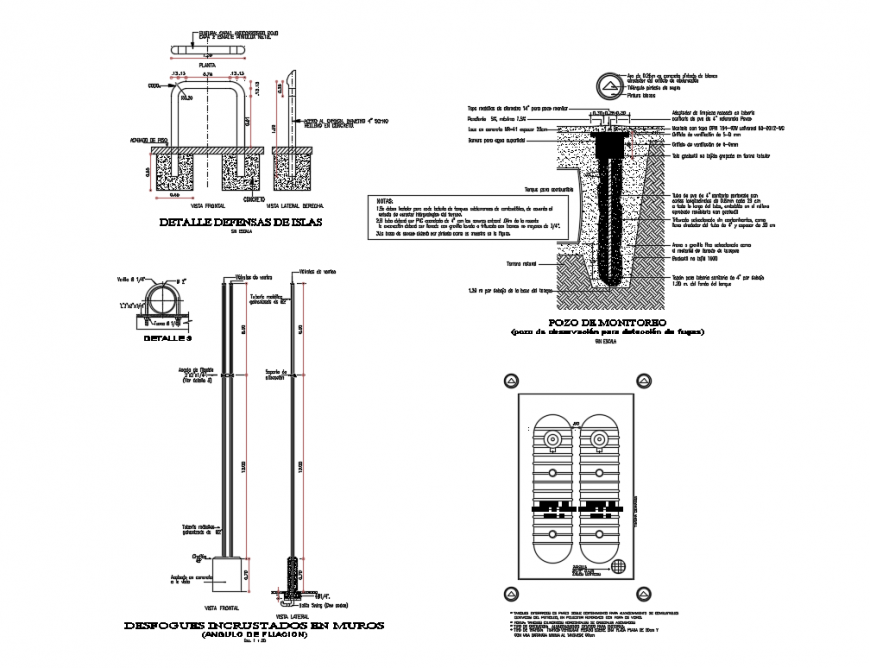

Storage tank for storage and fuel distribution installation details that includes a detailed view of desfogues incredited in walls (fixing angle), isometric, detail direct filling mouth spill containment 5 gallons for filling, typical cutting of tanks, tank plant, elevated tank anchoring system, storage tank for storage and fuel distribution, detail defenses of islands, desfogues incredited in walls and much more of tank details.




File Type: DWG File ID: 123174
