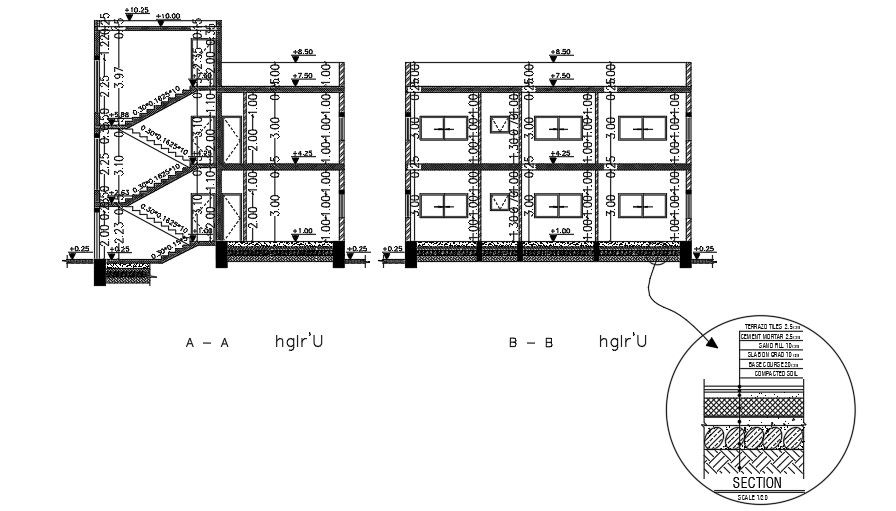

A section view of the 12x11m house building is given in this AutoCAD file. The total height of the building is 10.02m. This is G+ 1 house building. The left side elevation view is given. For more details download the AutoCAD drawing file.
