Wall support,pipe hanger and bolt view dwg file

Description:

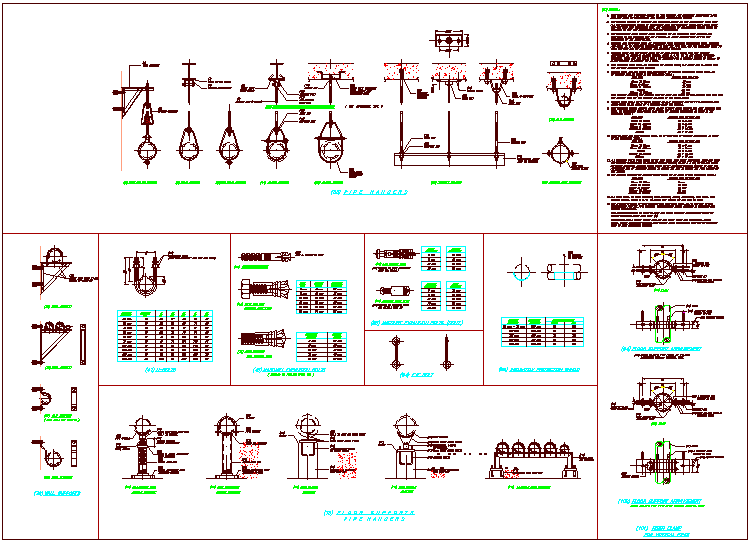

Wall support,pipe hanger and bolt view dwg file with view of pipe different hanger view like a clamp,bend clevis detail view and different wall bracket view with u bolt and eye bolt view.

Category : Blocks
Sub category : Hardware
File Type : Autocad
File ID : 27438
Type : Gold
Size : 436.31 KB
Publisher
Chirag
