Gas installation and plumbing details dwg file


Description

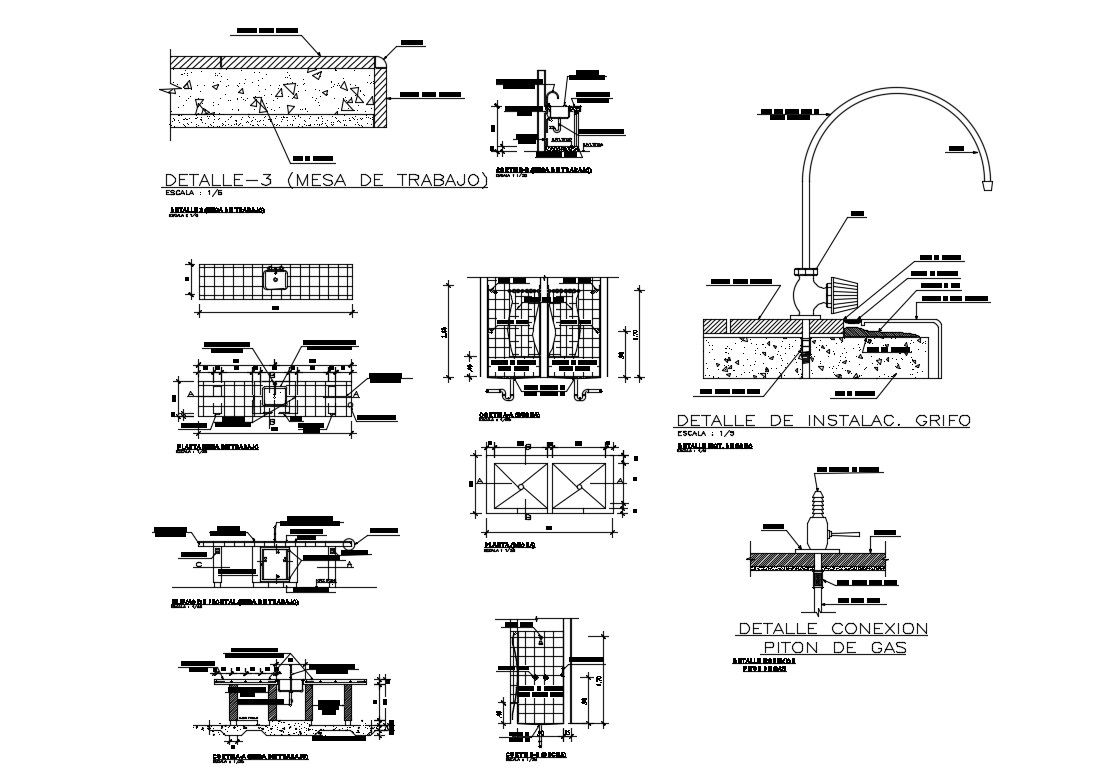

Gas installation and plumbing details that includes a detailed view of inst. tap, nickel-plated bronze swan neck wrench, gas socket with bronze piton, Contrazocalo tile, stainless steel laundry white mayolica, mayolica cut, porcelain filling, rubber protector, stainless steel laundry, for hose connection, simple union and much more of installation details.




File Type: DWG File ID: 62701

Uploaded by:


Vaishali
India
