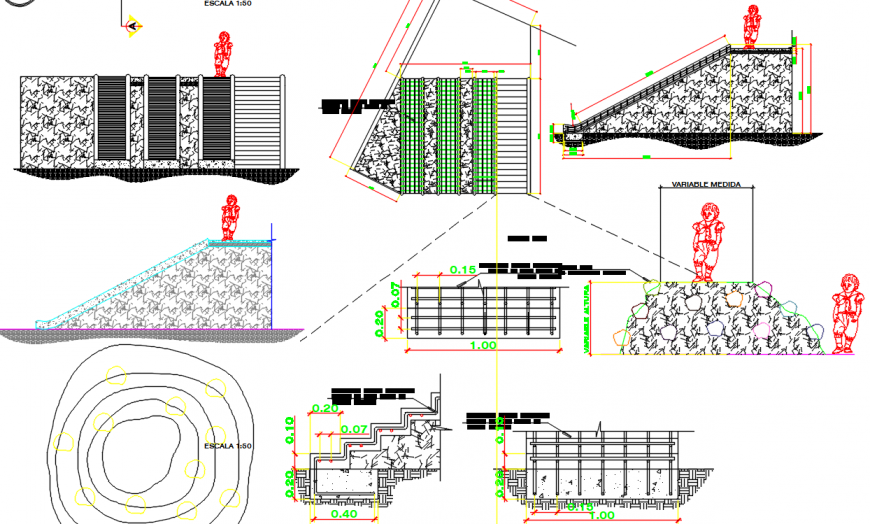

Children's slope on garden drawing


Description

THE MONTICLE AND CHILDREN'S SLOPE WILL BE WORKED A CONTENTION AREA WITH RIPE TYPE MATERIAL, WELL COMPACTED TO AVOID COLLAPSE, EACH WITH ITS MEASURES SPECIFIED IN PLANS.
THE CHILDREN'S MONTICLE IS PLACED WITH BALL STONE OF DIFFERENT SIZES INTRODUCED IN THE MONTICLE, WITH THE OBJECT WHICH IS THE WAY IN WHICH CHILDREN ARRIVE AT THE CUSPIDE OF THIS.
THE SLOPE WILL BE ARMED WITH 3/8 "IRON IN BOTH SENSES, AND A CONCRETE LAYER WITH A RESISTANCE OF 245 KG / CM2 WILL BE FOUND, WITH A PROPORTION OF 1: 1.5: 2.5 (PORTLAND CEMENT UGC WITH A RESISTANCE OF 4000 PSI WITH NATURAL PUZOLANA MANUFACTURED BY CEMENTOS PROGRESO, WHICH COMPLIES WITH THE NORMS COGUANOR NGO 41018 AND AST C206 AND C207, TO WHICH ONLY WATER IS ADDED TO OBTAIN THE DESIRED CONSISTENCY, CLEAN RIO SAND AND CRUSHED PIEDRÍN, WITH A THICKNESS OF 0.10 METERS.
THE GRADES WILL BE ASSEMBLED WITH 3/8 "IRON ON BOTH SENDS AND WILL BE FUNDED WITH A CONCRETE BASE, WITH THE SAME SPECIFICATIONS AS THE SLIDER OF A THICKNESS OF 0.10 METERS.




File Type: DWG File ID: 85482

Uploaded by:


Eiz Luna
New-Zealand
