Doors and windows elevation and installation for community building dwg file


Description

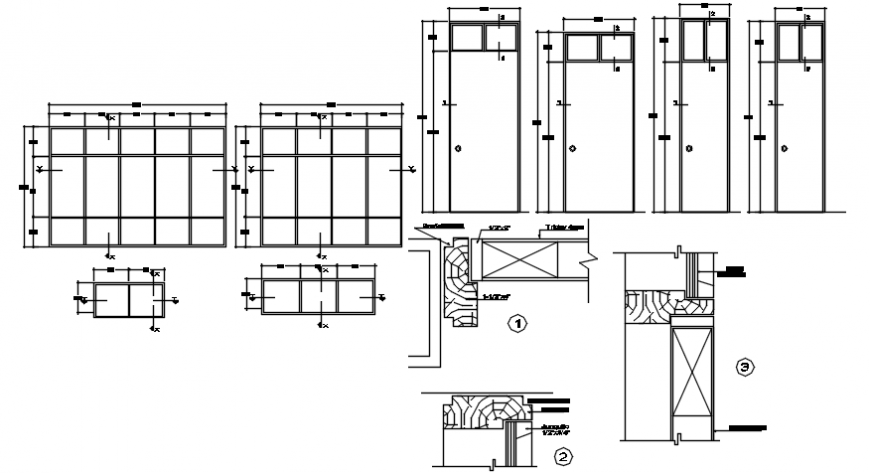

Doors and windows elevation and installation for community building that includes a detailed view of door elevation and window elevation, welded plate for grappling the clamp, door elevation details and door section details, double swing handle with reinforcement rib and expanded metal and ceramic block details, ceramic with block, lintel 2 irons with wood cap and frame and much more of door and window installation details




File Type: DWG File ID: 86271

Uploaded by:


Eiz Luna
New-Zealand
