Sanitary Detail For Tank AutoCAD Drawing With Section And Layout

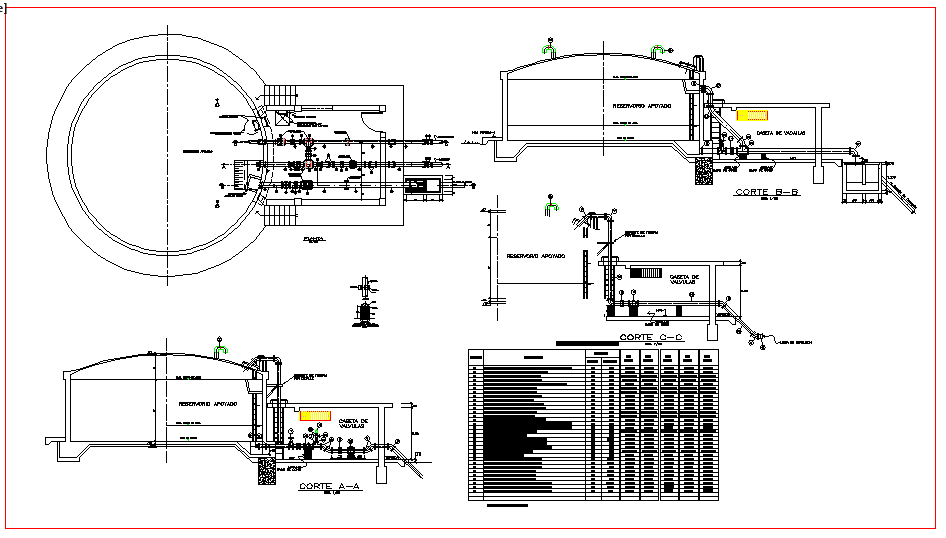

This sanitary detail for the tank AutoCAD drawing provides clear and accurate construction information for proper sanitary system planning and execution. The drawing includes detailed layouts showing inlet and outlet pipe connections, overflow arrangements, vent pipes, cleaning access, and linkage with the tank structure. It helps in understanding sanitary flow direction, pipe positioning, and coordination with water storage or treatment tanks in residential, commercial, and institutional projects.

The drawing also includes sectional details explaining pipe slopes, connection depths, sealing methods, and interface with RCC tank walls. These details support correct installation, leak prevention, and long-term operational reliability of the sanitary system. The AutoCAD file is useful for working drawings, construction documentation, and site coordination. It can be easily edited to suit different tank sizes, sanitary layouts, or project requirements, making it a reliable reference for architects, civil engineers, plumbers, and construction professionals involved in sanitary tank detailing.
