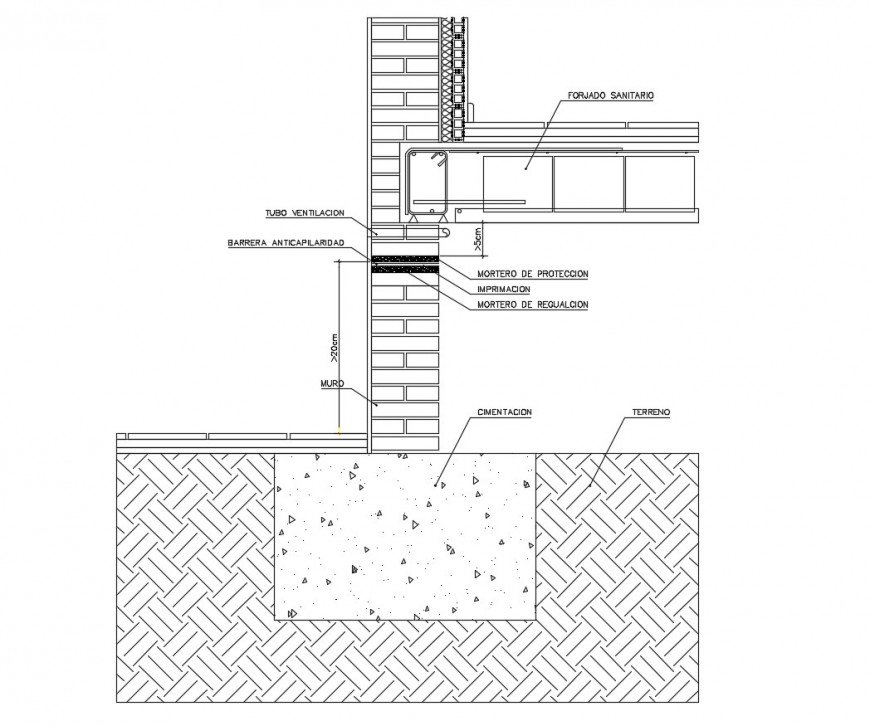

Water proof walls with barriers of anti-capillarity cad construction details dwg file


Description

Water proof walls with barriers of anti-capillarity cad construction details that includes a detailed view of free auto-cad file with layer- wall core polystyrene base material thickness of layer-3 of wall of to the base of concrete of thickness and concrete chain with rebar steel rod details and stirrup for chain frame details, Hollow for fastening and assembly with round so or post-tensioning provided with steel plate and reinforcement rod square and much more of wall details.




File Type: DWG File ID: 101805

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
