Water irrigation and plumbing structure details for public toilets dwg file


Description

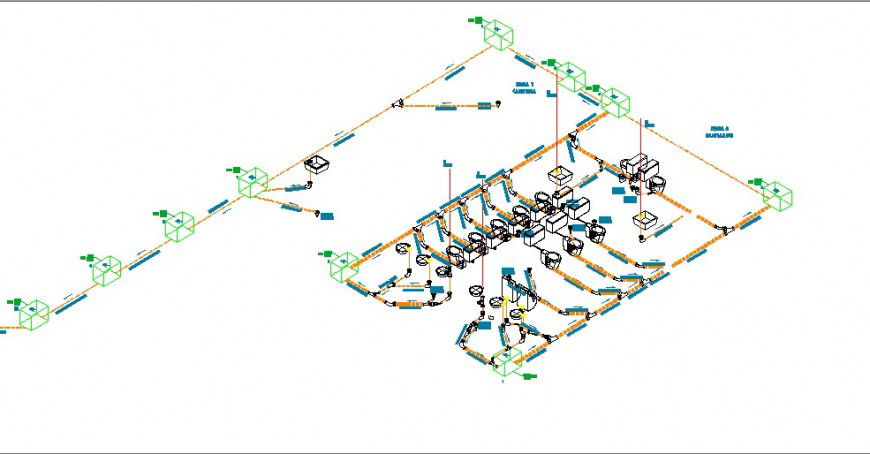

Water irrigation and plumbing structure details for public toilets that includes a detailed view of controller-to-valve details & wiring diagram, pipe and wire trenching, main isolation valve assembly control valve assembly with air / vacuum relief valve, drain/flush valve, dripper for palms and trees, drip line connection details, pvc to pe drip line take-off and drip irrigation for groundcovers, concrete thrust blocks, dimensions details, material details and much more of irrigation details.



Presenting the broken author avatar :D Eiz Luna
New-Zealand
File Type: DWG ID: 102040
