Residential House Layout with Floor Plans, Elevation and Structural


Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

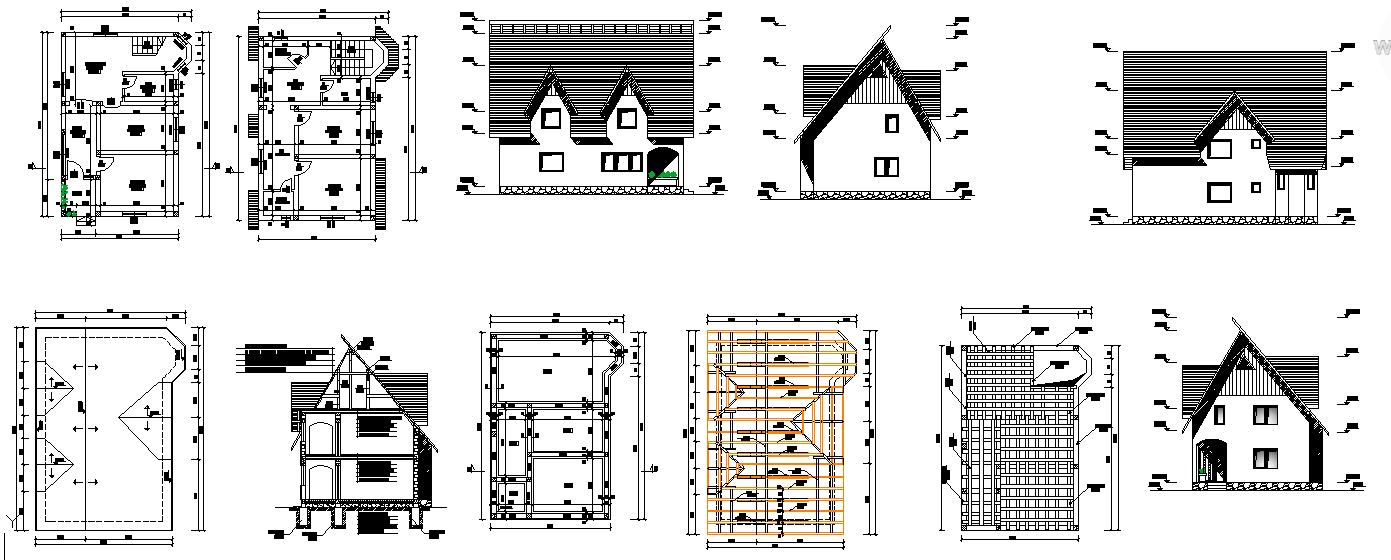

This residential house layout drawing provides a complete planning solution for architects, civil engineers, interior designers, and builders. The AutoCAD DWG file includes detailed ground and upper floor plans with living areas, kitchens, bedrooms, bathrooms, staircases, and circulation spaces. Structural elements such as wall thickness, columns, beams, and slabs are clearly indicated to support accurate construction and project approvals. Elevation and sectional views are included to visualize the façade, roof design, and internal organization of the house. Room dimensions and layout details are carefully annotated to ensure proper residential planning.
The residential house floor plan with dimensions is suitable for editing and customization in AutoCAD, 3D Max, Revit, and Google SketchUp software. This professional drawing helps users understand space utilization, natural lighting, ventilation, furniture placement, and functional zoning. It is ideal for individual home construction, residential development projects, and architectural reference work. With precise drafting standards and scalable measurements, this file ensures smooth coordination between architectural, structural, and MEP teams. Subscribers can download and adapt this residential house design for efficient construction, optimized living spaces, and modern residential development.
