Modern Park Layout Design 2D Plan With Landscaping and Dimensions


Ratings & Reviews
Be the first to share your experience with this product. Your review helps others make better decisions!
Description

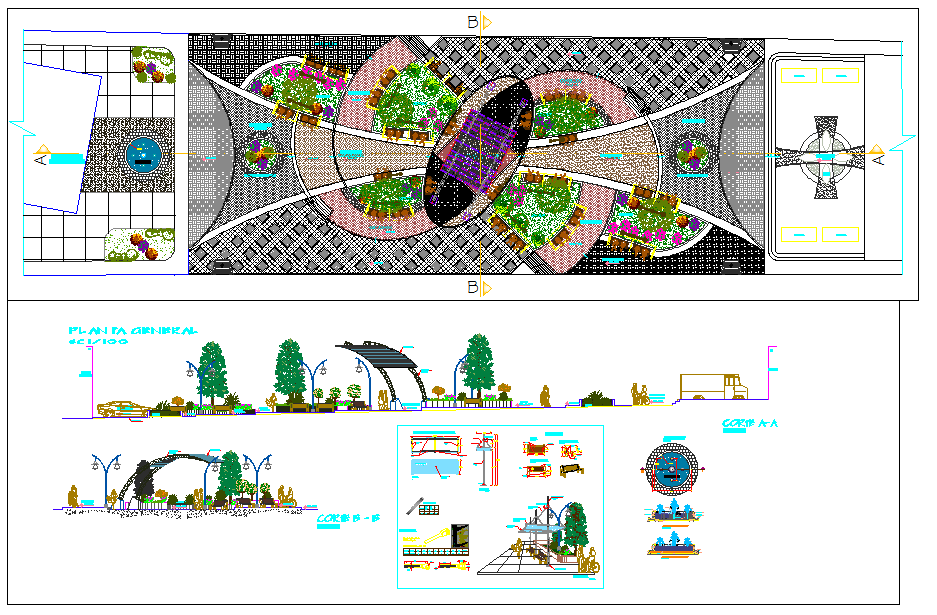

This AutoCAD DWG drawing presents a modern park layout design prepared with detailed architectural and landscape planning for public space development. The drawing includes a complete park master plan showing walking paths, seating zones, landscaped garden areas, water features, and central activity spaces arranged with clear circulation flow. Tree plantation, green zones, and decorative landscape elements are placed with measured spacing to support visual balance and user comfort. Paving patterns, pathway alignment, and open recreational areas are clearly illustrated with accurate dimensions, helping architects and planners understand spatial organization and land use planning. Section markers and reference lines are included to coordinate plan and section views for execution level clarity.
The modern park drawing also includes sectional views that explain ground levels, landscape features, seating structures, lighting elements, and vertical design relationships. Elevation and section details support understanding of height variation, shading structures, and site furniture placement. All details are drafted to scale in AutoCAD DWG format, ensuring dimensional accuracy and professional drafting quality. This modern park layout drawing is suitable for architects, landscape designers, civil engineers, and planners involved in urban park design, public space development, and landscape execution projects requiring clear planning, landscaping, and construction-level detailing.
