Architectural Column Support Detail with Elevation and Section

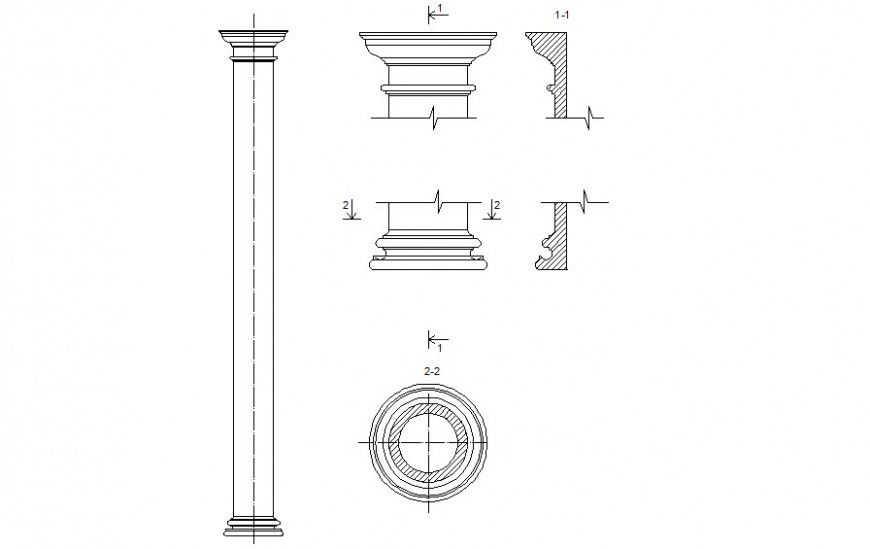

This drawing presents an architectural column support detail showing the vertical column elevation and structural base profile used in building support systems. The architectural column support detail illustrates a full column elevation with center line alignment that represents the structural axis of the column. The drawing includes detailed profiles of the column capital, shaft, and base support, which define the architectural form and structural proportions. Section views are also included to show the internal cut profile and molding shapes used in the column structure. The column support detail clearly highlights the stepped capital design at the top and the rounded base profile that supports the vertical shaft. These elevation and section details help architects and engineers understand the geometry and construction arrangement of the column element within architectural structures.
