Boundary Wall AutoCAD Elevation Section Design 2.40m Height Layout

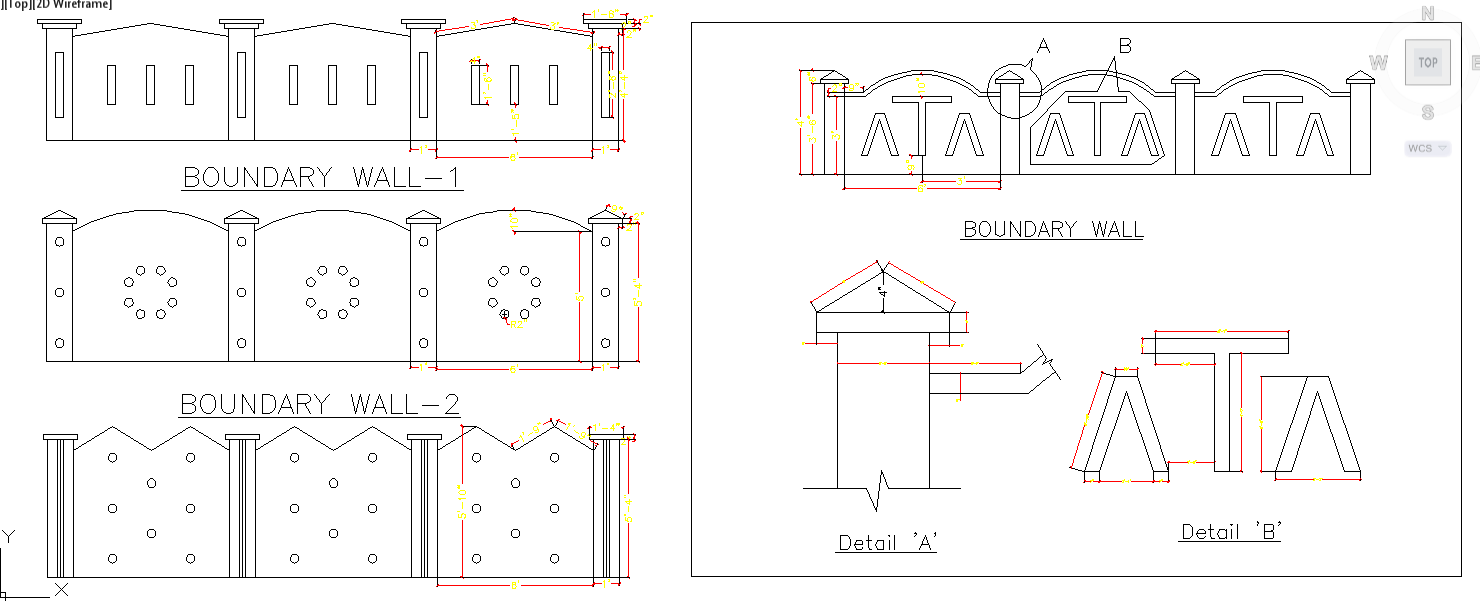

This boundary wall AutoCAD elevation section detail design 2.40m height layout drawing provides complete construction documentation for residential, commercial, and institutional site enclosure projects. The file includes multiple boundary wall elevation styles, decorative panel patterns, column spacing, pier detailing, coping design, and foundation section with accurate dimensional annotations. Structural details illustrate footing depth, base width, column reinforcement provision, and wall thickness for stability and durability. Gate pillar arrangement, entrance opening size, and railing integration are also clearly shown for site access planning. Detail drawings present coping slope, plaster finish levels, and connection joints between panels and columns. All measurements are properly marked for construction execution and approval drawings. This boundary wall AutoCAD elevation section detail design 2.40m height layout file is ideal for architects, civil engineers, builders, and site planners preparing professional CAD documentation in editable DWG format.
