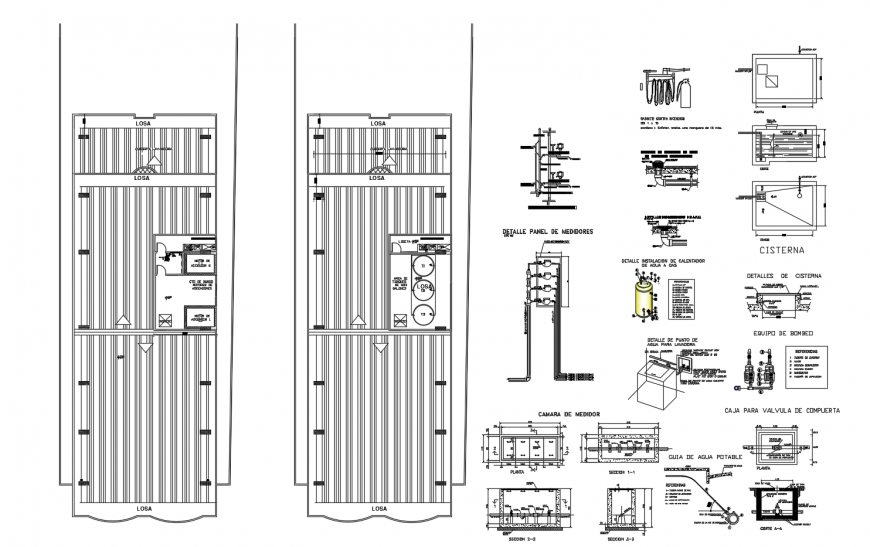

Water tank for apartment building elevation, section, installation and plumbing structure details dwg file


Description

Water tank for apartment building elevation, section, installation and plumbing structure details that includes a detailed view of method of fixing water gauge meter with boundary wall, septic tank plan details, elevation and all sided sectional details with dimensions details, manhole plan details, water depth detail, memory of material details, structure detail and much more of tank details.




File Type: DWG File ID: 105227
