Concrete Structure Detail Drawing With Foundation and Floor Levels

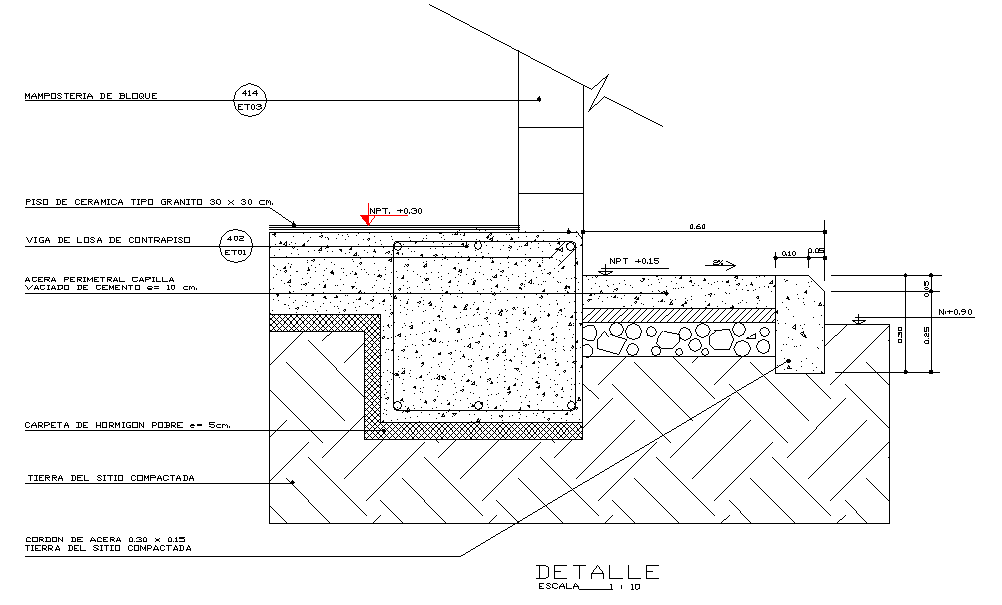

This concrete structure detail drawing presents a clear sectional construction detail showing foundation, floor buildup, and level coordination in a reinforced concrete system. The AutoCAD drawing illustrates block masonry wall support, concrete footing, base slab, and finished floor construction with accurate millimeter and centimeter measurements. Floor buildup details include a ceramic floor finish of 30 x 30 cm, a concrete screed layer, a counter slab beam, and lean concrete bedding of approximately 5 cm thickness. The drawing also shows compacted site soil, perimeter curb dimensions, and vertical level markings such as NPT plus 0.30 and NPT plus 0.15 to define finished floor heights and step transitions.

The concrete structure detail drawing is useful for architects, civil engineers, interior designers, and builders who require precise construction documentation for floor and foundation systems. Sectional details explain load transfer from masonry walls to concrete footing and ground, while step and curb measurements support accurate site execution. The drawing clearly defines footing depth, slab thickness, floor offsets, and joint connections using mm scale dimensions. This AutoCAD DWG file can be used for professional detailing and construction coordination in AutoCAD, 3d Max, Revit, and Google SketchUp, making it a practical reference for concrete structure planning and execution.
