Foundation Design Construction Drawing With Load and Reinforcement

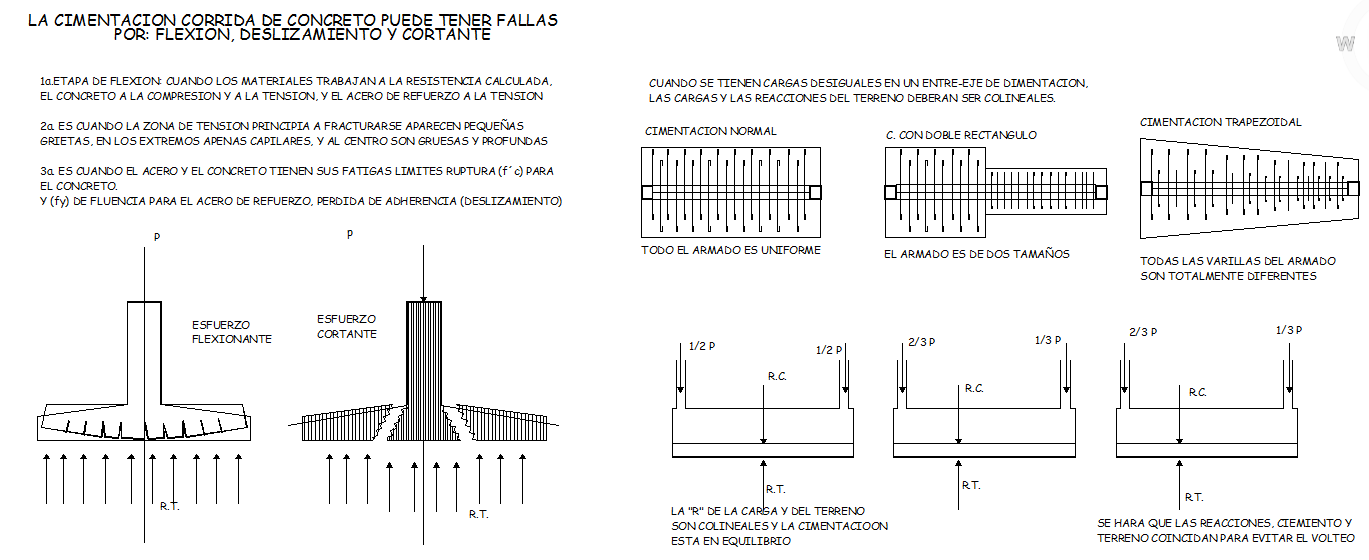

This foundation design construction drawing presents a clear technical explanation of reinforced concrete footing behavior under structural loads. The AutoCAD drawing illustrates different foundation conditions, such as normal footing, double rectangular footing, and trapezoidal footing with reinforcement distribution. Diagrams explain load transfer, soil reaction, flexural stress, shear stress, and sliding behavior using clear graphic representations. The drawing also shows reinforcement layout variations, load application points, reaction forces, and equilibrium conditions to explain how foundations respond to unequal loads and soil pressure.

The foundation design drawing is useful for architects, civil engineers, and builders who require a clear understanding of foundation performance and reinforcement arrangement. The drawing supports structural planning by showing how bending, shear, and soil reactions affect footing stability. Reinforcement variations are clearly illustrated to explain uniform and nonuniform load conditions. All details are represented in a clear schematic format suitable for construction documentation and structural reference. This AutoCAD DWG file can be used in AutoCAD, 3d Max, Revit, and Google SketchUp for professional detailing and technical coordination, making it a valuable reference for foundation design analysis and execution.
