Floor Foundation DWG with Prefab Columns, Concrete Slab and Insulation

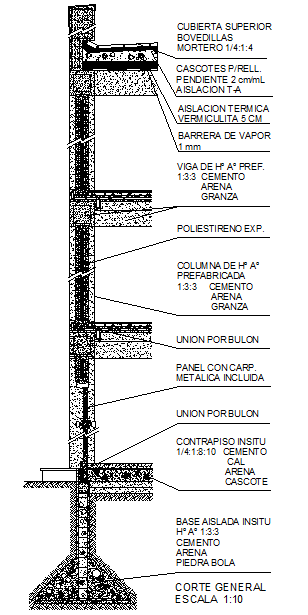

This Floor Foundation Detail DWG file provides a detailed cross-section of floor foundation construction, including prefabricated concrete columns, beams, slabs, and insulation layers. The drawing illustrates the application of reinforced concrete (H° A°) with precise proportions of cement, sand, and gravel for base and upper slabs. Key measurements include thermal insulation with 5 cm vermiculite, 1 mm vapor barrier, and polystyrene expansion layers. Users can see detailed layering of materials, from prefabricated columns and panels with metal cladding to in-situ concrete layers, providing a complete structural guide for architects, civil engineers, and builders.

The DWG file also highlights connection details such as bolted unions (porbulon), reinforced concrete beams, and floor screed proportions (1:4:1:8:10). Each element is annotated for clear identification, including base isolation layers, insulation, and prefabricated elements. Ideal for AutoCAD, Revit, 3D Max, and Google SketchUp users, this file delivers professional-grade construction drawings with all measurements, material specifications, and sectional views. Download this Floor Foundation Detail DWG file to ensure accurate foundation construction, proper load distribution, and structural stability.
