Structure Detail DWG with Steel Beams, Columns, and Slab Reinforcement

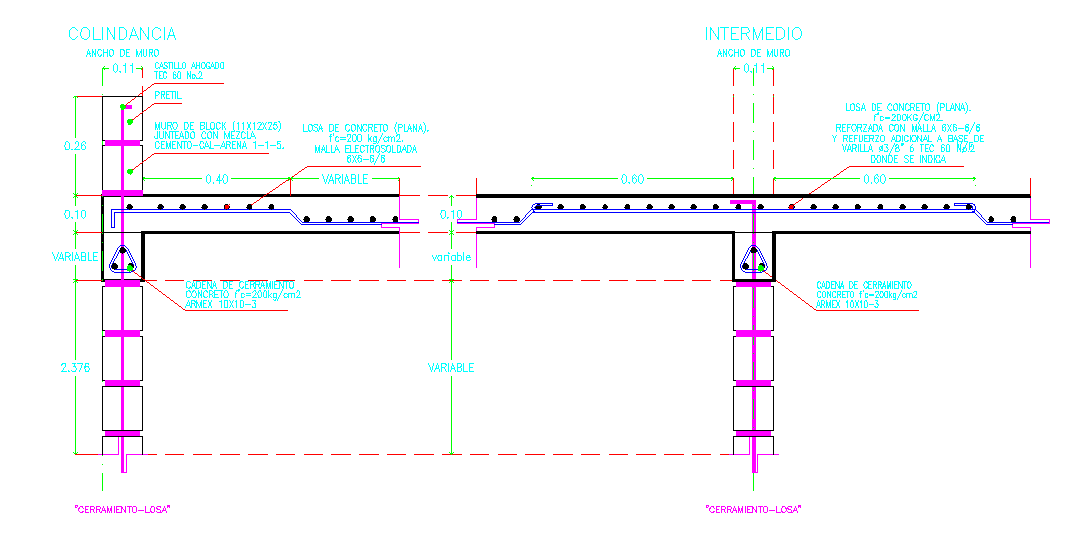

This Structure Detail DWG file provides a comprehensive layout of reinforced concrete structures, including steel beams, columns, and slab details. The drawing shows block walls (11×12×25 cm) with cement-lime-sand mortar 1:1:5, concrete slab (f’c=200 kg/cm²), and welded wire mesh reinforcement (8×8-5/8). Key dimensions include wall height of 2.376 m, variable span lengths, and slab thicknesses, allowing architects and engineers to accurately replicate structural elements. The file also highlights chain beams with concrete f’c=200 kg/cm², reinforcement cages, and slab closure systems to ensure stability and compliance with modern building standards.

The DWG file includes sectional views detailing steel beam placement, column reinforcements, and block alignment for precise load distribution. Annotations specify concrete and mortar ratios, block spacing, and reinforcement positions for proper construction and structural integrity. Ideal for AutoCAD, Revit, 3D Max, and Google SketchUp users, this file provides professional-grade, ready-to-use construction drawings. Download this Structure Detail DWG file to implement accurate steel and concrete structures with complete measurements and material specifications.
