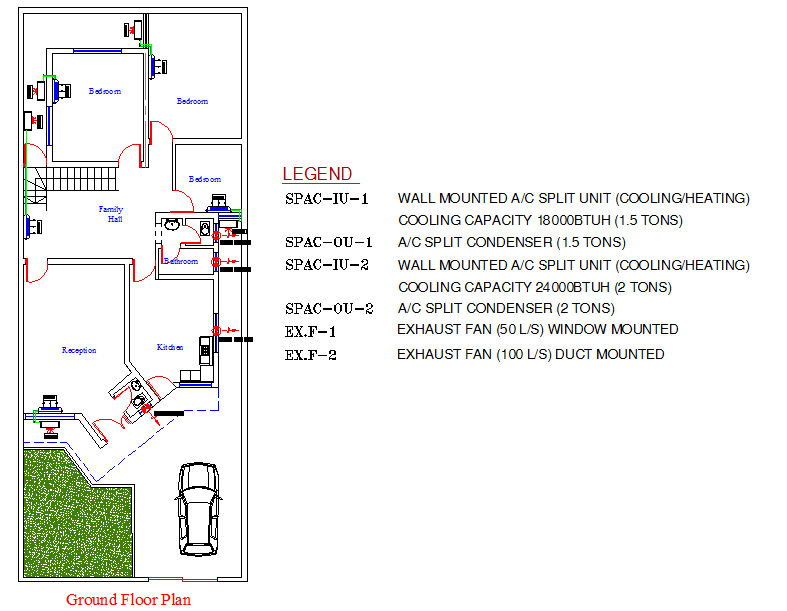

Ground Floor House AutoCAD Plan with HVAC Layout and Room Zoning

This ground floor house AutoCAD drawing presents a complete residential planning layout. Architectural category includes bedroom kitchen family hall reception and toilet zoning with clear internal circulation. Mechanical category highlights HVAC split unit locations condenser placement cooling capacities and exhaust fan routing. Electrical and service category shows equipment points aligned with room usage. Planning category covers parking access entry movement and green space placement. Technical category defines wall thickness door swings and furniture clearances. Residential category makes this drawing suitable for accurate house planning coordination and construction reference.
