Bridge Cover Structural AutoCAD Drawing with Steel Framing Details

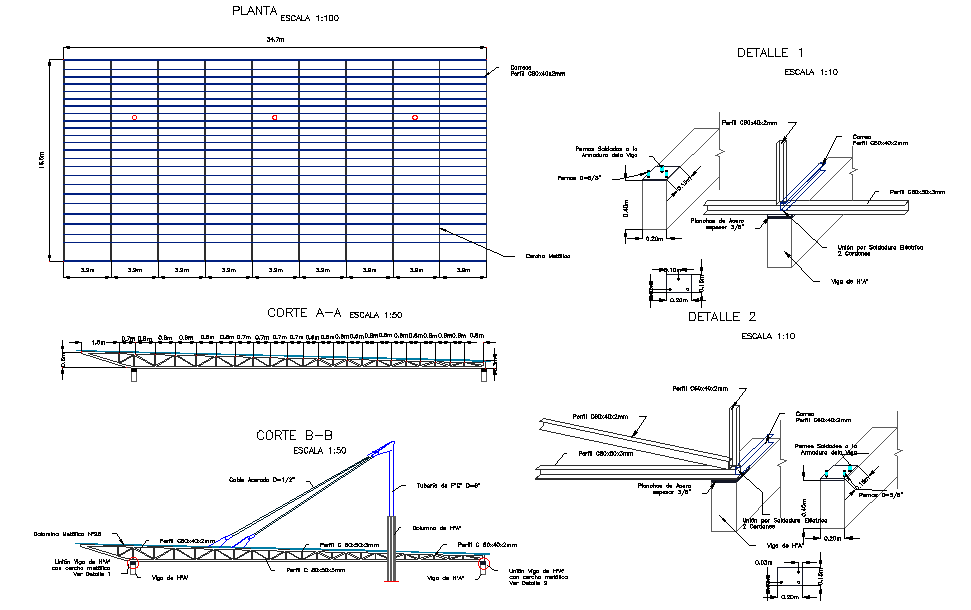

This AutoCAD drawing is categorized under bridge structural detailing and focuses on bridge cover construction. It includes a complete plan layout showing overall bridge cover dimensions, panel spacing, and modular width distribution. Section A A and Section B B illustrate steel truss arrangement, slope geometry, and support alignment across the span. Connection details present welded joints, bolt fixing, plate thickness, and steel profile sizes for accurate fabrication. Roof cover framing, secondary members, and load distribution paths are clearly marked for construction clarity. Elevation views define height levels, slope angles, and edge conditions. This drawing supports precise execution for civil engineers and structural designers working on bridge cover systems.
