Production Hall Design Drawing with Steel Truss Roof and Floor Plan

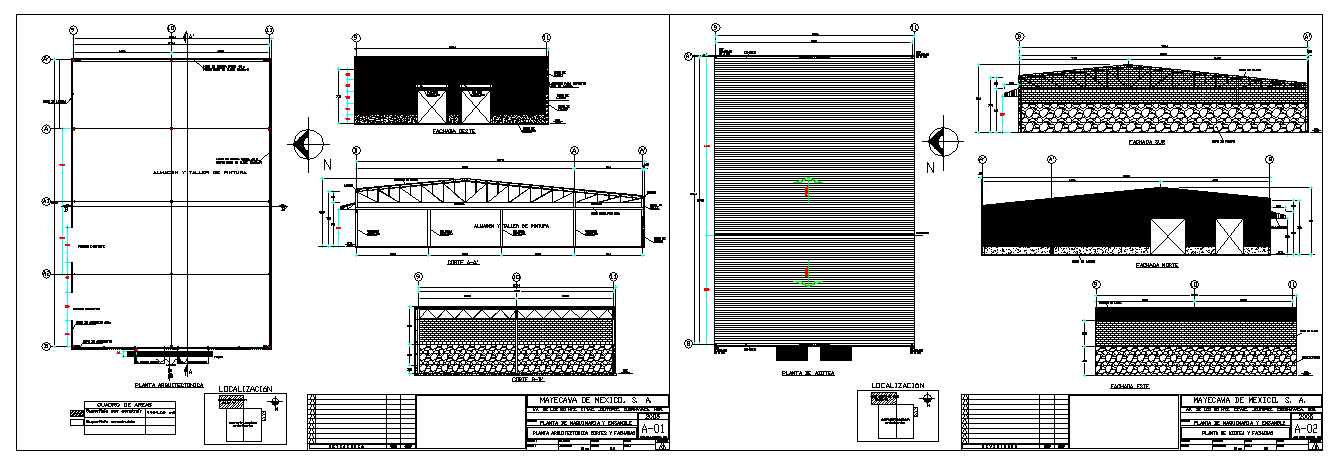

This production hall design drawing provides a detailed AutoCAD layout for industrial and manufacturing buildings. The plan shows overall hall dimensions with structural grid spacing for machinery and workflow planning. Elevation drawings illustrate large shutter openings wall heights and clear internal spaces for production use. Section views define steel roof truss arrangement roof slope and cladding buildup for wide span coverage. Floor level markings and slab thickness details support heavy load operations. Foundation and flooring layers are indicated for industrial durability. This production hall AutoCAD file is suitable for factory planning and execution drawings.
