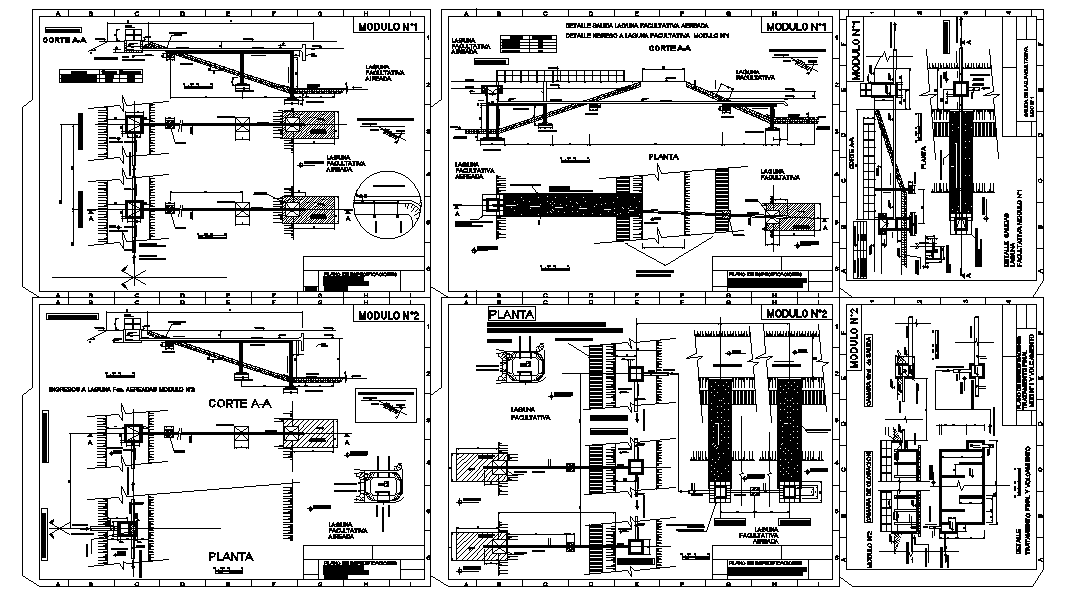

Water Station Detail Drawing with Modular Plan Section and Flow Layout

This water station detail drawing provides a comprehensive AutoCAD layout for civil and hydraulic infrastructure projects. The drawing includes modular water station plans with clearly marked inlet and outlet flow paths. Section views illustrate structural supports slab levels and equipment alignment within each module. Plan views define pipe routing channel widths and connection points for efficient water movement. Foundation and support details indicate load distribution and stability for operational units. Dimensional annotations guide accurate installation and coordination on site. The layout supports water treatment pumping or distribution station planning. This water station AutoCAD file is suitable for engineers and designers working on utility infrastructure.
