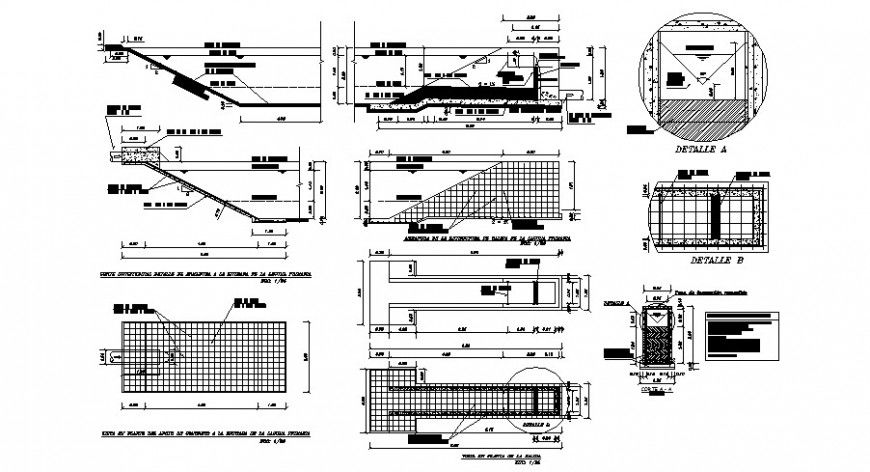

Primary lagoon, walls of lagoon and constructive structure details dwg file


Description

Primary lagoon, walls of lagoon and constructive structure details that includes a detailed view of walls of the lagoons stabilized soil with concrete details with concrete die details, steel with covering details, emptying against the ground in contact with the ground details, exposed to the environment within contact with water and much more of construction details.




File Type: DWG File ID: 106831

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
