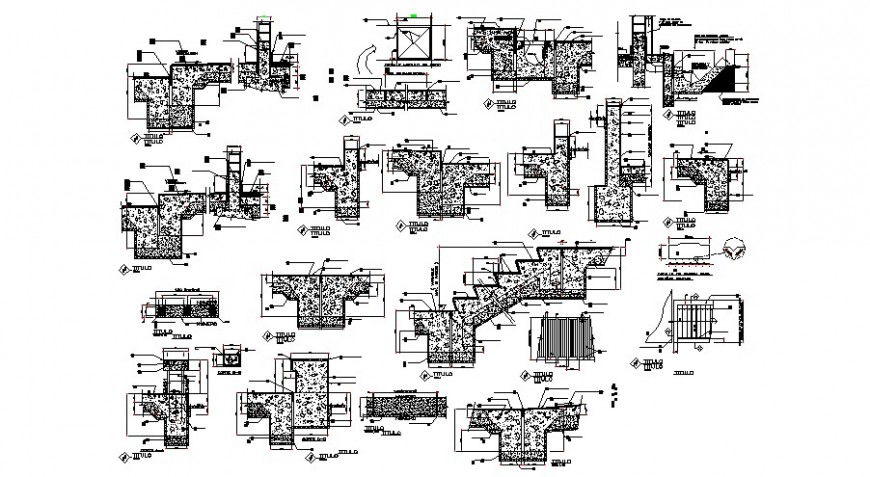

Staircase construction details of school building with wall dwg file


Description

Staircase construction details of a school building with a wall that includes a detailed view of front sectional view with main stairways and stairways sectional view of terrace stairways with vest scenario, ceramic floor and horizontal section, tapizon novoflor corrugated beige with ceramic floor clime color Blanco and foot print ceramic, novice glue and steps details, supportive wooden railing installation, base floor concrete plan, wall construction dimensions view, supportive pillar view and much more of stairways details.




File Type: DWG File ID: 106867

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
