Steel Rafter Detail DWG with Wood Beams, Rafters, and Post Layout

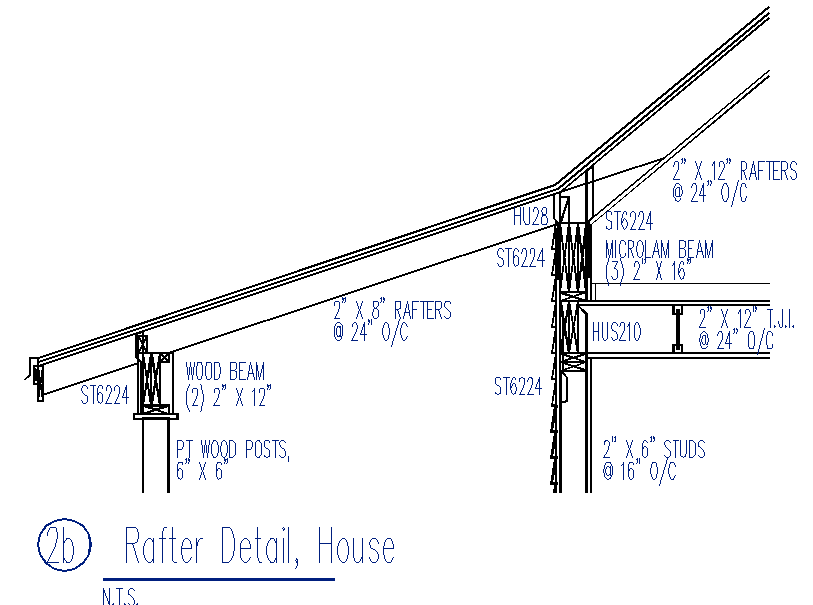

Download this detailed Steel Rafter Detail DWG file designed for architects, civil engineers, interior designers, and builders. This CAD drawing illustrates complete roof framing with precise measurements for rafters, beams, micro-lam beams, and wood posts. It shows 2"x12" rafters spaced at 24" O/C, 2"x8" rafters at 24" O/C, wood beams (2"x12"), PT wood posts (6"x6"), micro-lam beams (3 2"x16"), and stud placements (2"x6" @16" O/C). Each element is dimensioned clearly for accurate construction planning. The drawing also includes TJI joists (2"x12" @24" O/C) and structural connections for load-bearing integration. This Steel Rafter Detail DWG is ideal for studying structural framing, load distribution, and residential roof design.
