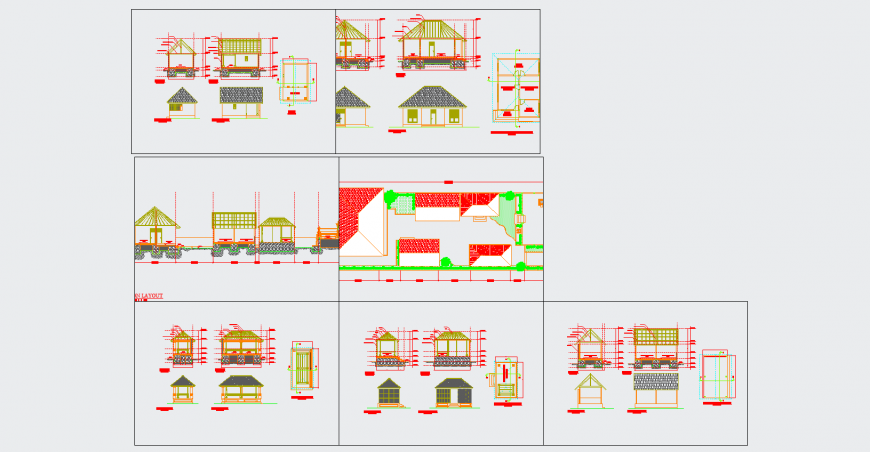

Cottage house all sided elevation and constructive section details dwg file


Description

Cottage house all sided elevation and constructive section details that includes a detailed view of flooring view with wall construction, memory of materials, footings details, column view and beam construction, covers closure type with soil  burried wall closure and exterior solera details, holes, interior partition and granite veneer of the country with steel supports, halfeneisen type with Brick partition, plaster plastering and Concrete wall  and much more of house details.




File Type: DWG File ID: 107209

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
