Foundation plan structure details of college building floors dwg file


Description

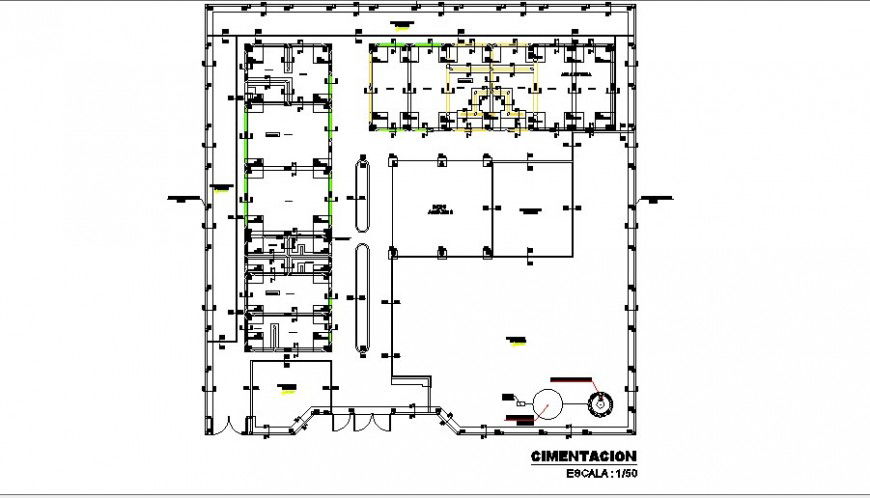

Foundation plan structure details of college building floors that includes a detailed view of the foundation with side typical shoe & typical central shoe with columns and foundations shoes, cistern tank and walls of concr. arm beams flat and peralted beams, foundation beams, (cement: sand: crushed stone) typical detail of reinforcement and ended of walls of masonry, detail of cistern and cure the concrete and much more of structure details.




File Type: DWG File ID: 107315
