Residential House AutoCAD Drawing Elevation Section Floor Plan

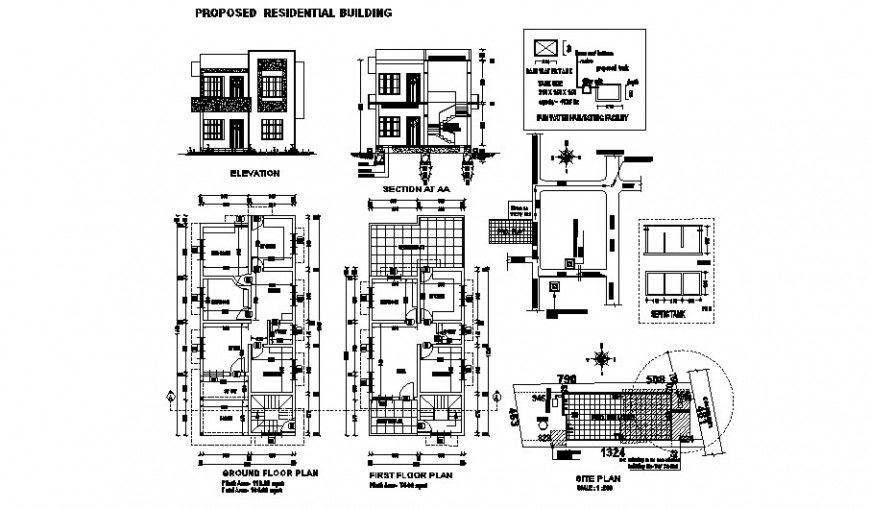

This AutoCAD DWG file provides a complete residential house drawing set that includes elevation, sectional views, ground floor plan, first floor plan, and site plan with accurate measurements. The elevation drawing shows the front façade with balcony projection, window alignment, parapet detailing, and main entrance positioning. Sectional drawings clearly represent floor-to-floor heights, staircase sections, slab levels, and wall thicknesses for better structural understanding. The ground and first floor plans illustrate clear zoning of spaces such as drawing room, living room, family hall, kitchen, dining area, bedrooms, toilets, bathrooms, and internal circulation with staircases. All doors and windows are marked with sizes and locations to support detailed planning.

The site plan included in this AutoCAD drawing shows plot orientation, setbacks, access points, and building placement within the site boundary. Furniture layouts, balcony areas, laundry space, and service zones are also indicated to enhance functional clarity. Wall sections, staircase details, and dimensional annotations make this drawing suitable for execution and approval purposes. This residential AutoCAD DWG file is ideal for architects, civil engineers, builders, and design professionals who require a coordinated house drawing set for residential construction projects with clear architectural and dimensional information.
