Absorption Well DWG with Concrete Walls and PVC Ventilation Pipes

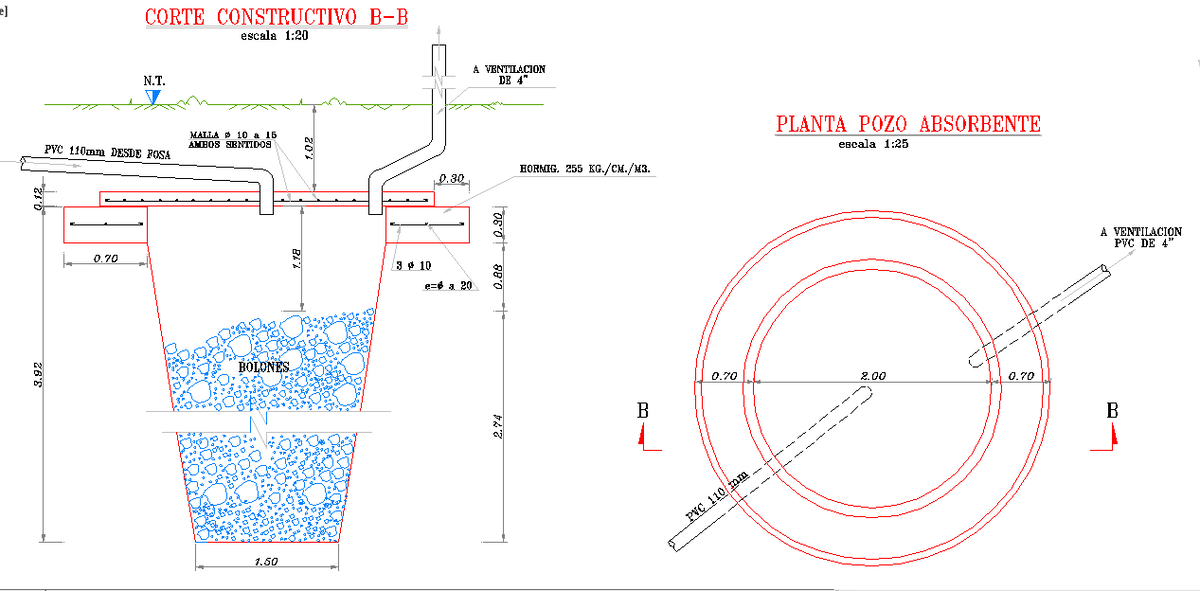

Enhance your civil engineering projects with this detailed Absorption Well DWG file. This AutoCAD drawing provides a complete plan and sectional views of an absorption well designed for efficient groundwater management. The drawing shows a circular well with a diameter of 2.00 meters, a depth of 3.92 meters, and a reinforced concrete structure with 255 kg/cm³ strength. PVC pipes of 110 mm diameter are detailed for water inlet and 4” ventilation, while reinforcement mesh and stone layers ensure proper water percolation and structural integrity. This DWG file also includes precise dimensions for top slab thickness, well walls, and placement of gravel layers, making it suitable for residential, commercial, and industrial water absorption projects.
