Concrete Repison Wall Detail with Dimensions and Reinforcement Section

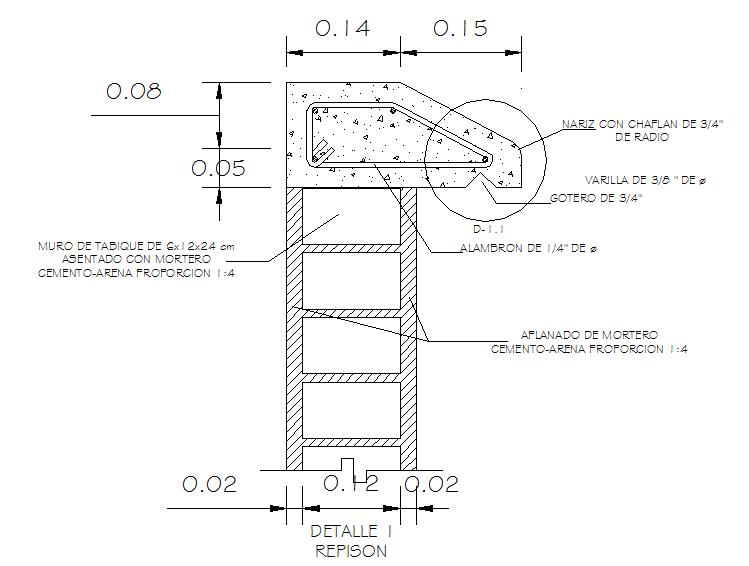

This AutoCAD drawing presents a clear repison wall construction detail showing the junction of the masonry wall and reinforced concrete repison. The section illustrates precise dimensions such as 0.14 m slab projection, 0.05 m mortar layer, and 0.08 m concrete depth for accurate site execution. It includes reinforcement details like 3 8 inch steel bar placement, 1 4 inch diameter binding wire, and drip groove profile for water control. Material notes specify cement sand mortar in 1:4 proportion and tabique masonry units sized 12x24 cm. The drawing also highlights chamfered edges, plaster finish layers, and bearing support alignment. This detail is suitable for terrace edges, parapet bases, and roof termination zones requiring clean drainage and structural continuity. The file supports architectural detailing, structural coordination, and construction documentation workflows.
