Roof Fill and Wall Section with Masonry, Concrete and Reinforcement

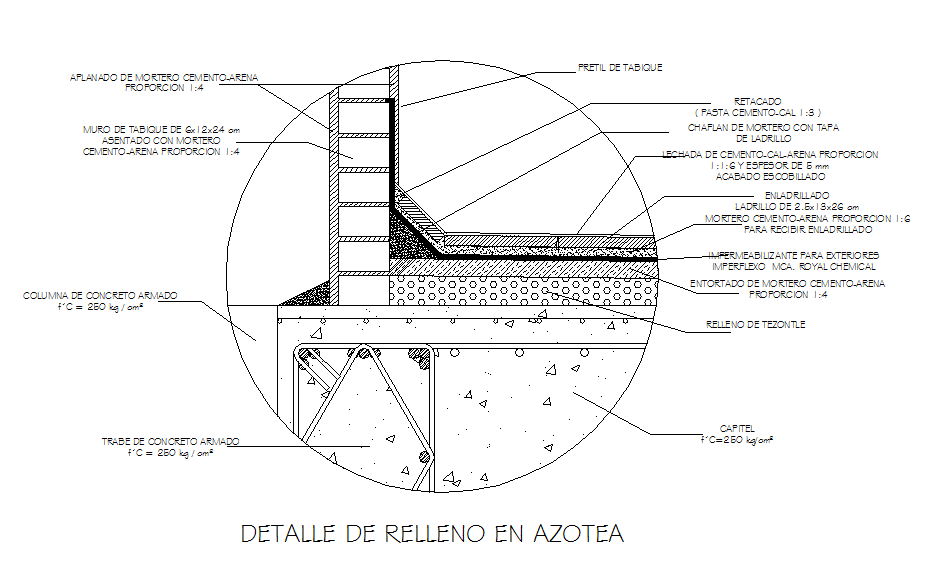

This detailed Roof Fill & Wall Section DWG showcases reinforced concrete and masonry construction for roof slabs and walls. The drawing includes sectional details of reinforced concrete columns, beams, hollow blocks, cement-sand mortar layers, brick bonding, finishing layers, waterproofing, and terrazzo fill for roof areas. Designed for architects, structural engineers, and builders, this DWG provides accurate dimensional references, material specifications, and construction annotations for precise implementation. Each detail highlights slab thickness, wall layers, reinforcement bar placement, capitol, and finish textures for professional documentation and site execution. Ideal for residential or commercial buildings, this DWG serves as a complete reference for accurate detailing, construction compliance, and high-quality project visualization for architects, engineers, and builders.
