Foundation Structure Detail DWG with Footing Wall Slab Insulation

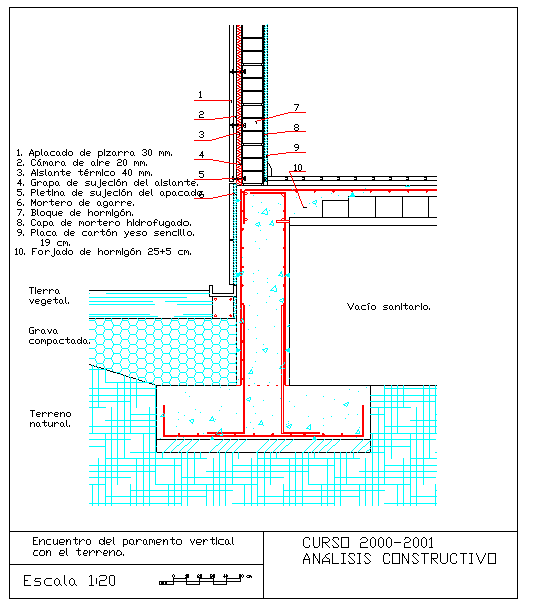

This Foundation Structure Detail DWG file provides a clear, professional construction drawing showing the vertical foundation wall connection to ground level. The drawing includes detailed layers such as 30 mm slate cladding, 20 mm air cavity, 40 mm thermal insulation, waterproofing protection layer, mortar bedding, reinforced concrete block masonry, single-layer gypsum board wall, and a 25 plus 5 cm reinforced concrete floor slab. The foundation footing detail clearly illustrates the arrangement of compacted gravel, natural soil, vegetable soil, and sanitary voids, making it ideal for understanding ground-to-structure interaction.
