Detail Brick Wall Drawing Showing Masonry Bond and Load Path

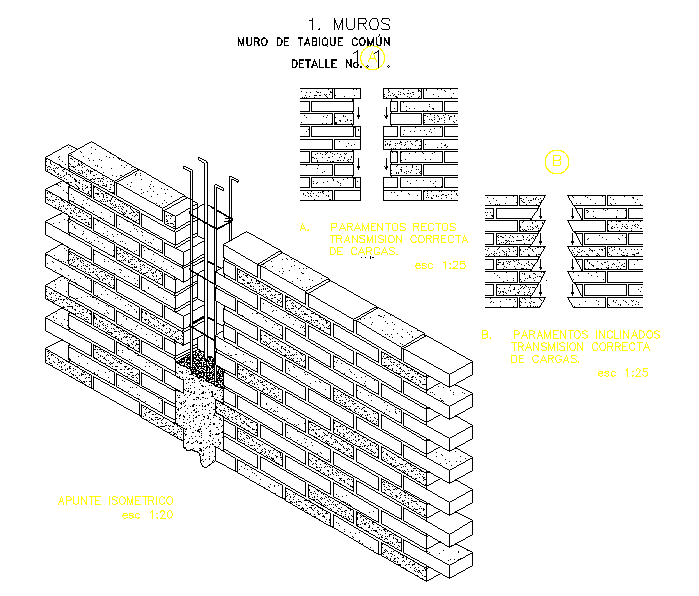

This Detail Brick Wall DWG file presents a clear masonry construction drawing showing brick wall bonding, alignment, and load transmission details. The drawing includes an isometric view of a brick partition wall with proper brick arrangement, mortar joints, and vertical reinforcement placement. Standard brick dimensions and bonding patterns are illustrated to explain correct load transfer through the wall. Sectional details show straight and inclined wall arrangements, highlighting how load distribution is maintained in different masonry configurations. The drawing also indicates joint continuity, wall thickness, and connection behavior within the building superstructure.
