Roof truss detail 2d view CAD construction unit dwg file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

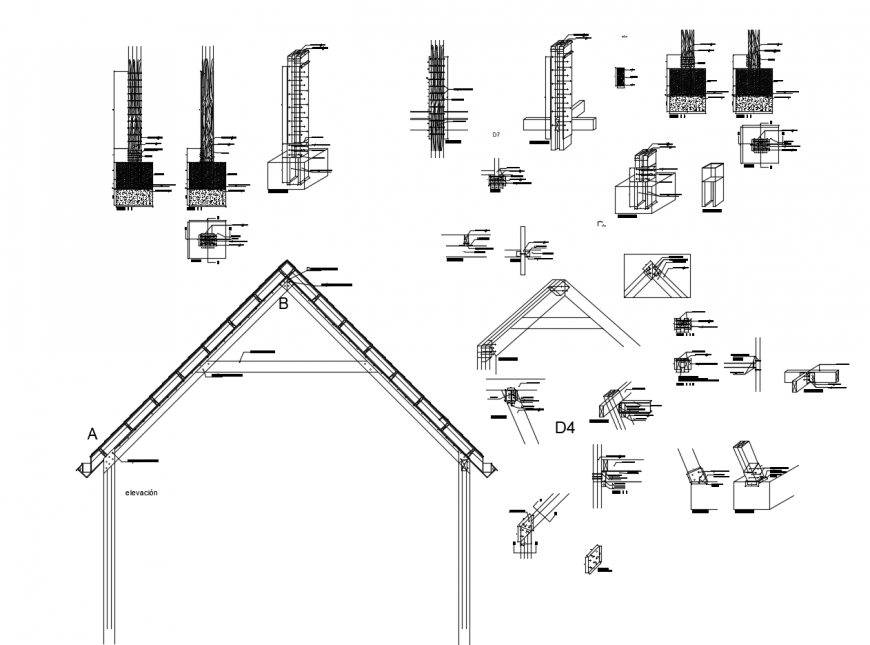

Roof truss detail 2d view CAD construction unit dwg file, struts detail, principal rafter detail, column supports detail, welded and bolted joints and connections detail, top elevation detal, wooden struts detail, steelbarckets detail, top elevation detail, section line detail, different sections detail, etc.
File Type:
DWG
File Size:
491 KB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#roof section#pitch and rise#span#principal rafter
