Steel Structure Detail Drawing with Truss Layout and Section Views

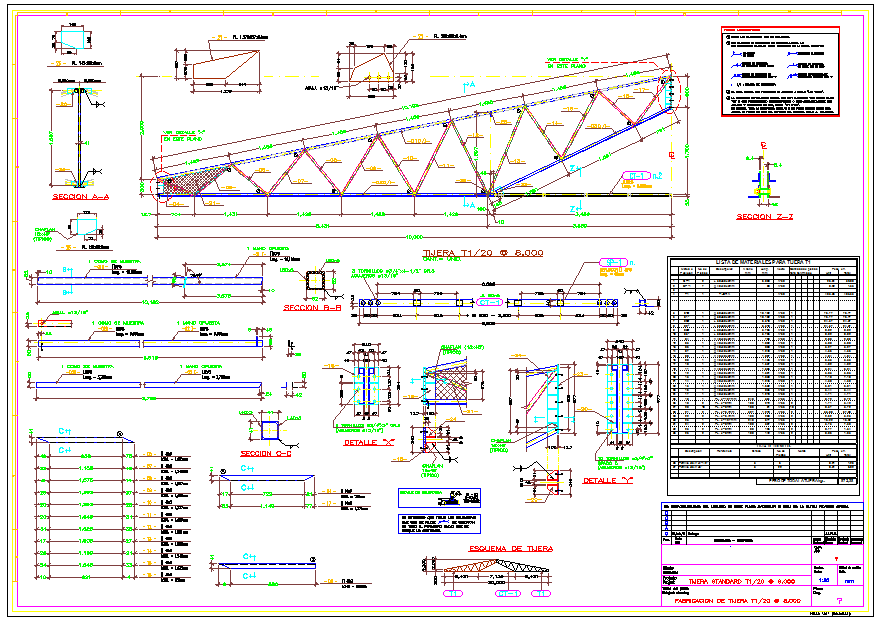

This Steel Structure Detail drawing is provided in AutoCAD DWG format and presents a comprehensive set of structural detailing for a steel truss system. The drawing includes a full truss elevation with clear panel spacing, diagonal and vertical members, and overall length measurements. Member sizes, connection points, and alignment are accurately annotated to support fabrication and erection. Multiple sectional views show chord profiles, bracing arrangements, and joint configurations with precise dimensions. Load path indication, support conditions, and slope geometry are clearly represented to aid structural understanding and coordination.
