Concrete Foundation Detail Drawing with Footing and Wall Section

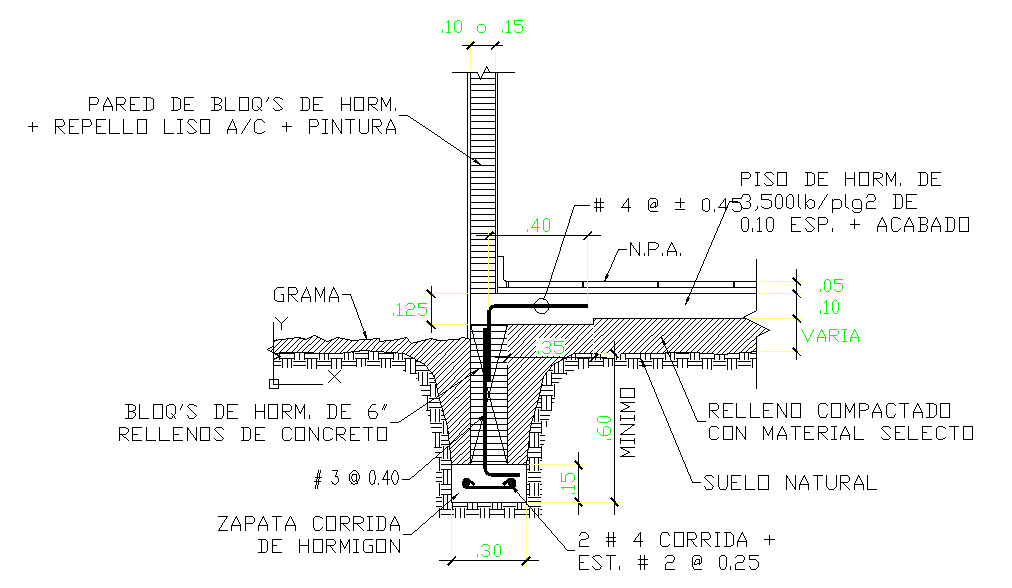

This Concrete Foundation Detail drawing is provided in AutoCAD DWG format and shows a clear sectional detail of a reinforced concrete foundation system. The drawing illustrates a strip footing with a concrete wall above, including block masonry filled with concrete and finished with smooth plaster and paint. Key measurements such as footing width of approximately 30 cm, minimum foundation depth of 50 cm, and wall thickness values of 10 to 15 cm are clearly marked. Reinforcement details include steel bars noted as number 3 at 0.40 spacing and number 4 bars placed as continuous reinforcement, helping users understand structural stability and load transfer.
