Guard House Detail Drawing with Plan Section Elevation Details

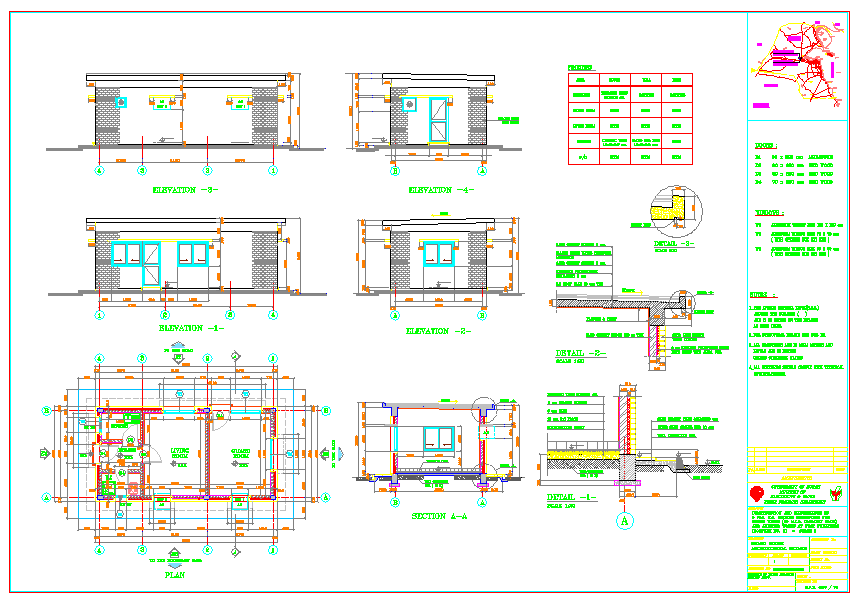

This Guard House Detail Drawing is prepared in AutoCAD DWG format and presents complete architectural detailing with plan, section, elevation, and construction details. The drawing includes a clearly defined guard room, toilet block, entry door positioning, and internal circulation layout. Floor plans show wall thickness, door and window openings, and room zoning with accurate dimensions. Typical internal room sizes range from 3.0 m to 3.6 m, allowing functional working space for security personnel. Elevation drawings illustrate exterior finishes, window placement, canopy projection, and building height proportions. Section drawings define floor level, plinth height, roof slab thickness, and foundation depth for execution clarity.
