Gate Panel Design Drawing with Curved Layout and Section Details

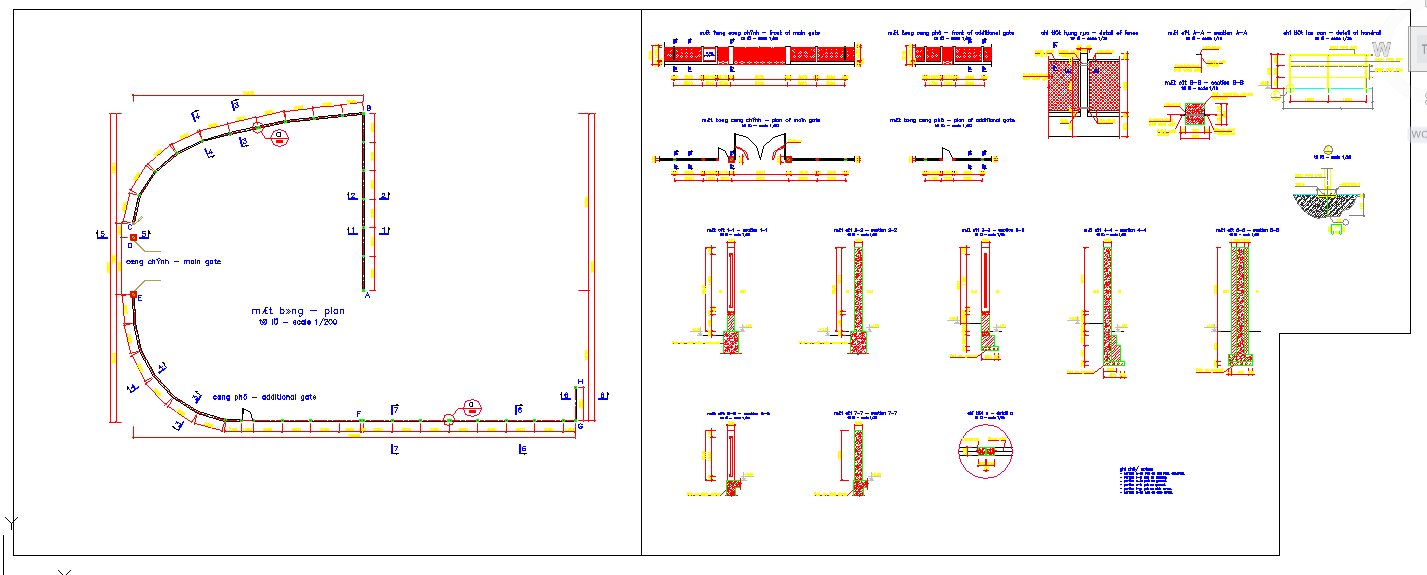

This Gate Panel Design Drawing is prepared in AutoCAD format and provides detailed planning for the boundary and entry gate panel construction. The drawing includes a clear gate panel layout plan with curved and straight boundary alignment, suitable for the main gate and additional gate access. Panel thickness, wall offsets, and alignment with the site boundary are shown with precise dimensions for accurate execution. The plan illustrates gate opening positions, hinge locations, and curvature radius, supporting smooth gate movement and proper clearance. Typical panel heights range from 2.0 m to 2.2 m, while wall and panel thicknesses are defined for structural stability and finish coordination.
