Modern House Planning Drawing with Structural Grid and Floor Layout

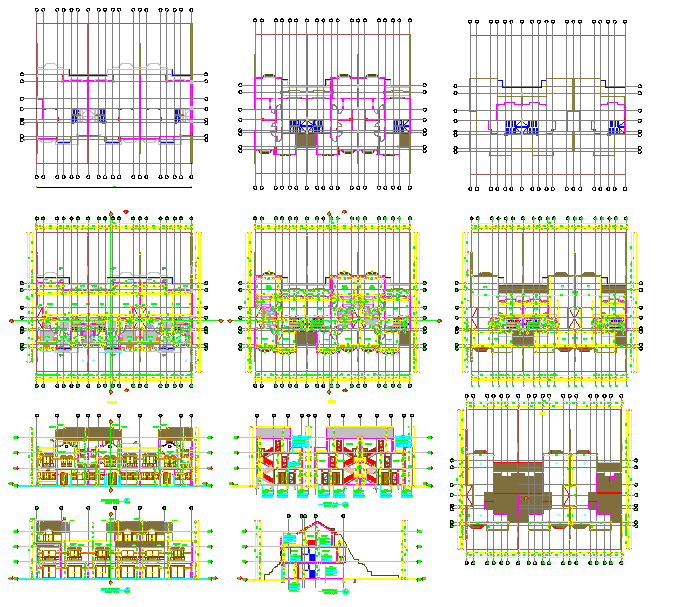

This Modern House Planning Drawing is provided in AutoCAD DWG format and presents detailed residential layouts supported by structural grid systems. The drawing set includes multiple floor plans, sectional references, and coordinated alignment lines for accurate construction work. Internal areas such as living space, bedrooms, kitchen, dining zone, bathrooms, and stair connections are arranged with balanced proportions. Column positions, beam alignment, slab boundaries, and load-bearing walls are clearly indicated to support structural stability. Typical room widths range from approximately 3.0 m to 4.8 m, while grid spacing is maintained around 4.0 m to 5.5 m for efficient space planning.
