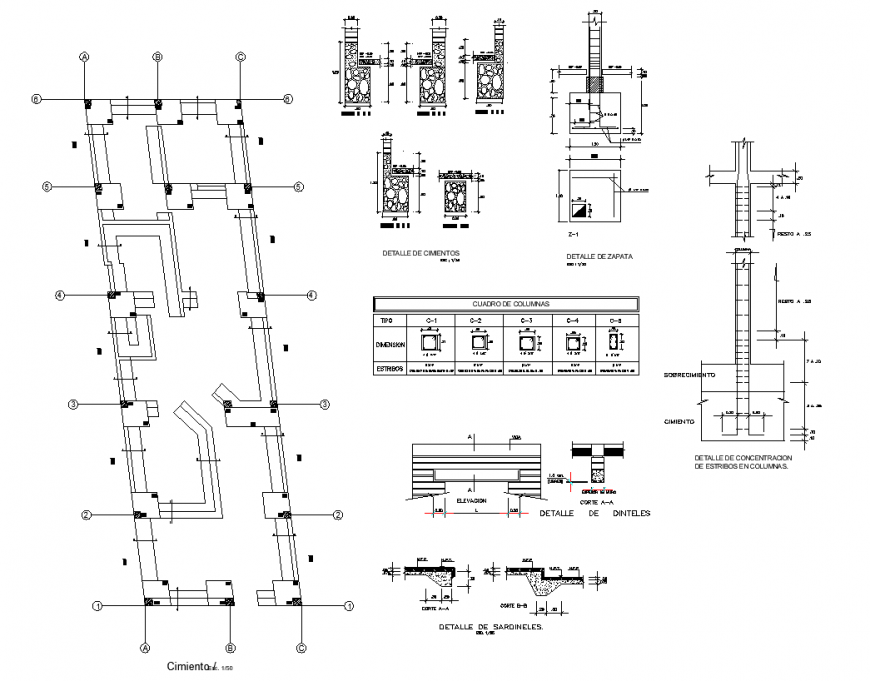

Column installation detail 2d view CAD construction block autocad file


Description

Column installation detail 2d view CAD construction block autocad file, reinforced concrete cement (RCC) structure, dimension detail, column spacing detail, reinforcement detail in tension and compression zone, effective cover detail, column foundation detail, dimension detail, hidden line detail, concrete masonry detail, hook up and bent up bars detail, etc.



Eiz Luna
New-Zealand
File Type: DWG ID: 109645
