Roofing structure block detail 2d view CAD construction unit autocad file
Ratings & Reviews
⭐
No Reviews Yet
Be the first to share your experience with this product. Your review helps others make better decisions!
★★★★★
Description

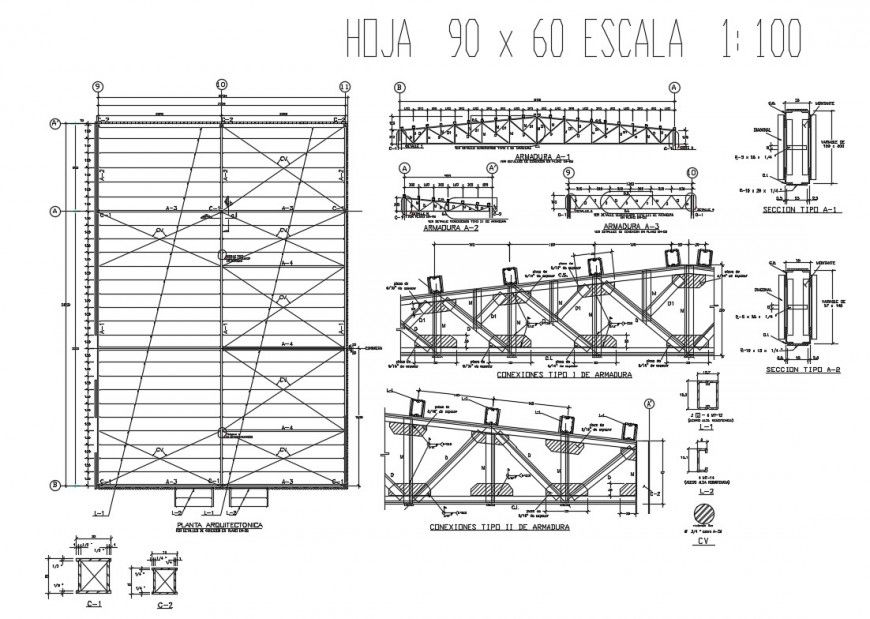

Roofing structure block detail 2d view CAD construction unit autocad file, roof plan detail, roofing material detail, hatching detail, struts detail, principal rafter detail, dimension detail, purlin detail, welded and bolted joints and connection detail, column detail, main and sag tie detail, roof span detail, etc.
File Type:
DWG
File Size:
3.5 MB
Category::
Construction
Sub Category::
Construction Detail Drawings
type:
Gold
Tags
#roof section#pitch and rise
