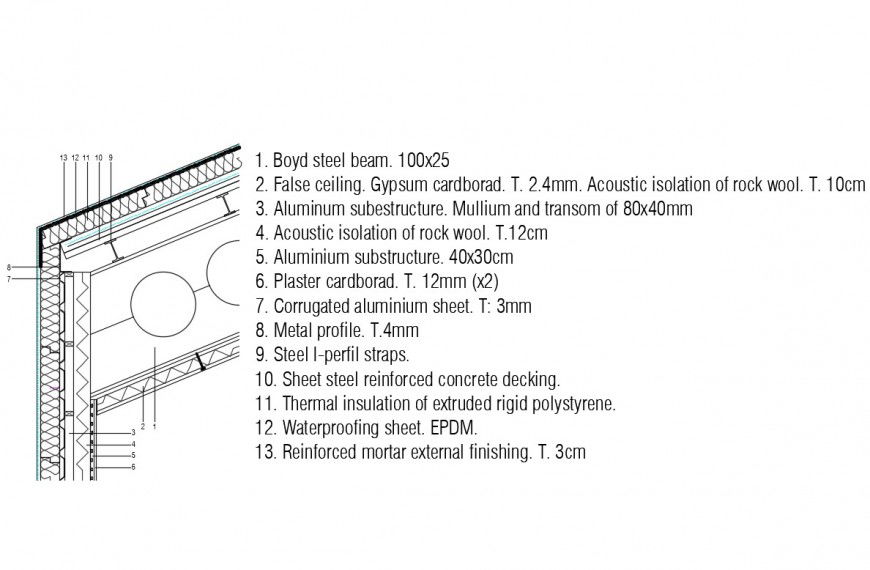

Continuous enclosing steel structure-constructive details dwg file


Description

Continuous enclosing steel structure-constructive details that includes a detailed view of flooring view, wall construction, memory of materials, footings details, column view, beam construction, covers closure type, soil  burried wall closure , exterior solera, holes, interior partition, granite veneer of the country with steel supports, halfeneisen type, Brick partition, plaster plastering, Concrete wall  and much more of section details.




File Type: DWG File ID: 109964
