Building Structure Joint Detail Drawing with Concrete and Steel Data

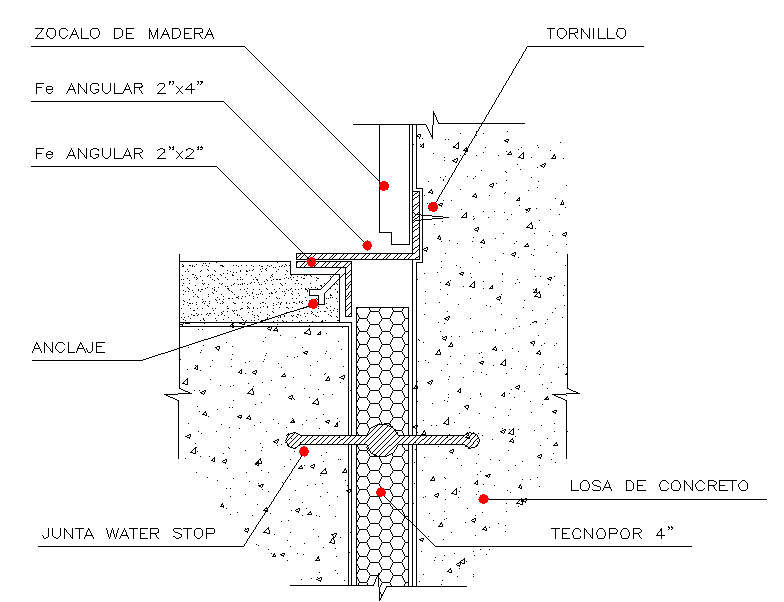

This Building Structure Joint Detail Drawing presents complete technical information for construction joint coordination and foundation connection works. The file includes detailed sectional views showing concrete slab connections, anchorage systems, steel angle supports, and wooden skirting placement. It illustrates the accurate positioning of Fe angular members sized approximately 2 by 4 inches and 2 by 2 inches, along with anchor bolts and screw fixings for secure attachment. Water stop joint placement, concrete slab thickness, and Tecnopor insulation layers of nearly 4 inches are clearly marked to ensure moisture resistance and thermal protection. All structural components are supported with precise dimension lines, reference markers, and construction annotations for professional site execution.
