Water tap of kitchen installation and plumbing details dwg file


Description

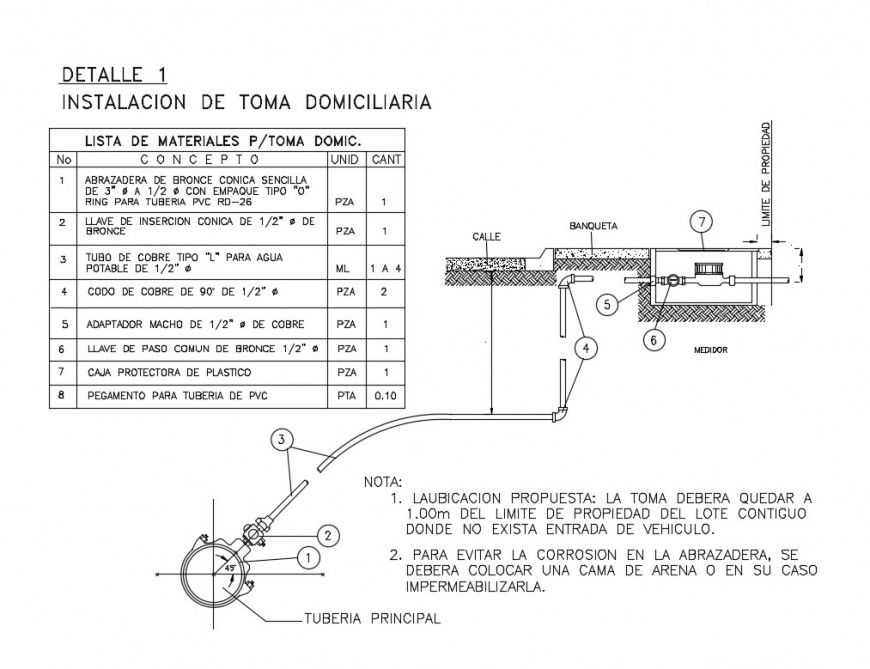

Water tap of kitchen installation and plumbing details that includes a detailed view of bronze bracket kitchen single 3 "∅ to 1/2 ∅ with packaging type" o "ring for pvc pipe rd-26, 1/2 "bronze conical insert wrench, "l" type copper pipe for 1/2 "drinking water ∅, copper elbow 90 ° of 1/2 "∅, male adapter 1/2 "∅ copper, common bronze wrench 1/2 "∅, plastic protective box, glue for pvc pipe and much more of tap details.




File Type: DWG File ID: 109989

Uploaded by:


Presenting the broken author avatar :D Eiz Luna
New-Zealand
