Structure Detail DWG with Drain Area, Sealant and Measurement Views

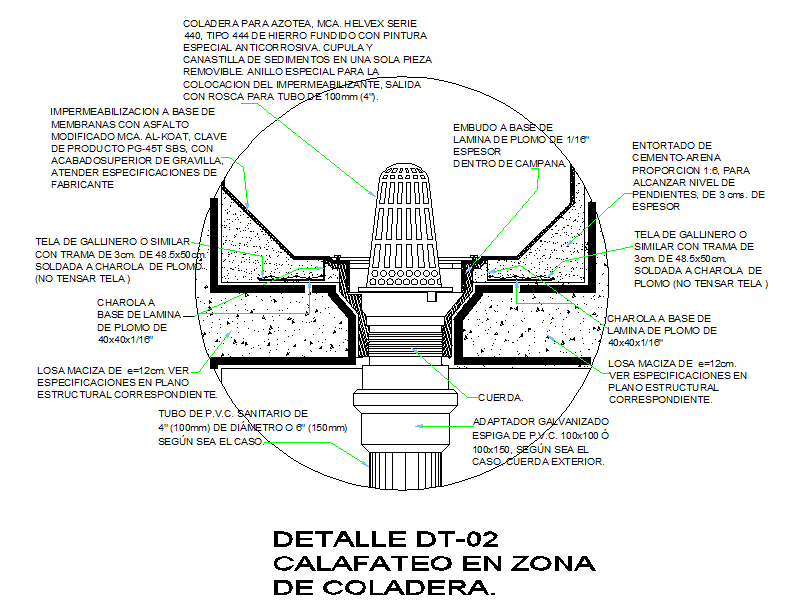

This AutoCAD DWG file provides a comprehensive structural detail of a drainage area with sealant application, including sectional views and precise measurements. The drawing illustrates detailed components such as roof drain, sediment basket, lead sheets, waterproofing membranes, concrete slab, and PVC sanitary piping. Each part is annotated with dimensions, material specifications, and installation notes, offering architects, civil engineers, and builders a complete guide for the correct construction and waterproofing of roof drainage zones. The drawing also highlights the placement of meshes, slope specifications, and adapters to ensure proper water flow and structural stability.

Professionals can use this detailed DWG for planning, execution, and verification of drainage systems in residential and commercial buildings. The file follows standard AutoCAD conventions with clear annotations, scaled measurements, and cross-referenced components, ensuring accuracy in structural implementation. Ideal for AutoCAD, Revit, 3ds Max, and SketchUp users, this DWG helps reduce construction errors, streamline workflow, and maintain durability and efficiency in waterproofing and drainage installations. It is essential for designing functional, safe, and long-lasting building drainage systems.
