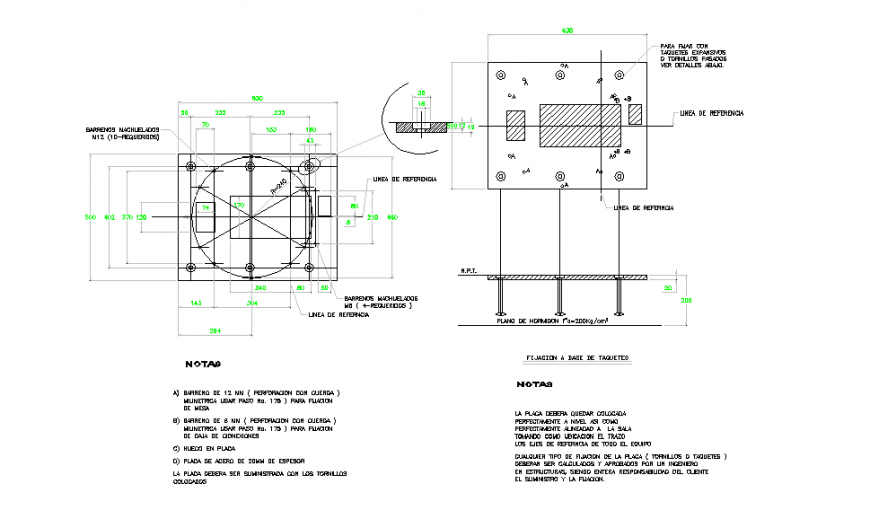

Fixing at the base of taquete Detail, 12 mm hole (drilling with rope) millimeter use step no. 175) for table fixation, 20mm thick steel plate, Reference line, to fix with expansive tacks or last screws see details below.
