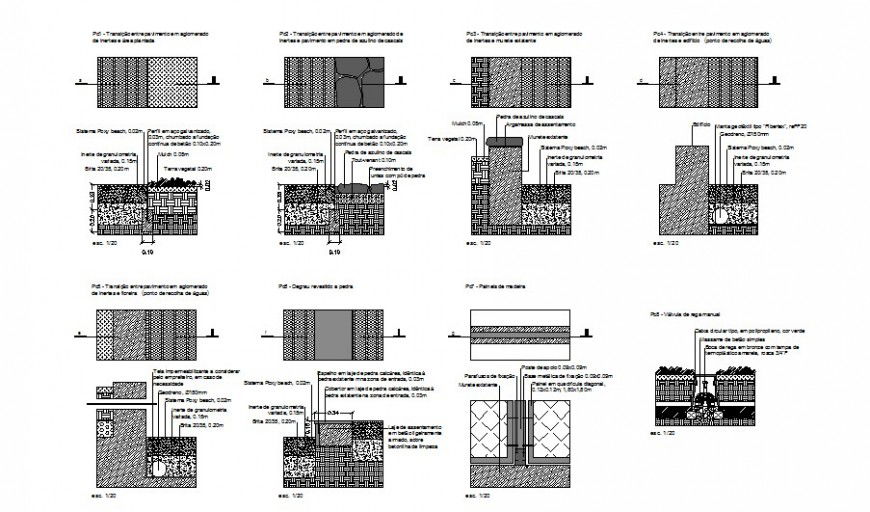

Transition between inground agglomerate and planted area and garden automation details dwg file


Description

Transition between inground agglomerate and planted area and garden automation details that includes a detailed view of pavements, sidewalks and terraces in front of the vilcanota, pavements plaza mirador del vilcanota, plazuela auction of the malecon, hot water malecon, staircase and ramp of the cultural plaza, link platform to the malecon, central bank of the cultural plaza, Detail of the floor of the sale point, module with ramp and stairs, cut-lifting of the planter bench, cut-lifting of the planter bench, typical boardwalk of the seawall and much more of garden details.




File Type: DWG File ID: 112082

Uploaded by:


Eiz Luna
New-Zealand
