Section structure mansion Construction design


Description

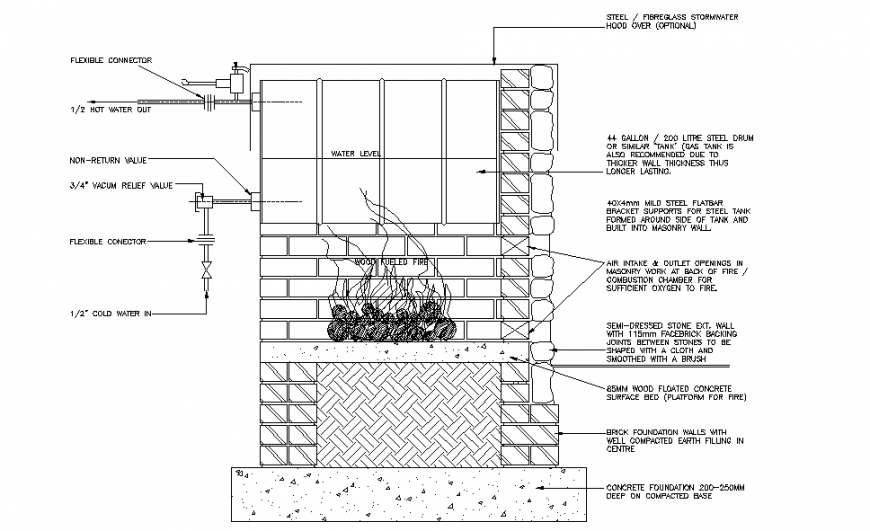

Section structure mansion Construction design, 85mm wood floated concrete surface bed (platform for fire), concrete foundation 200-250mm deep on compacted base, 40x4mm mild steel flatbar bracket supports for steel tank formed around side of tank and built into masonry wall.





File Type: DWG File ID: 112192

Uploaded by:


Eiz Luna
New-Zealand
